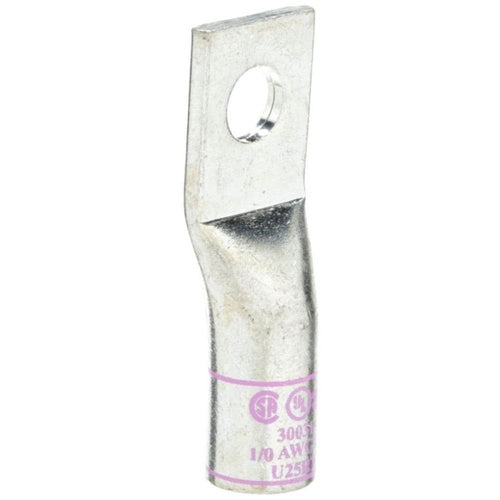

3M 30031 Scotchlok Copper 1-Hole Lug, Up To 35 Kv, 1/0 Awg, Stud Size 5/16 (8), Pink
Product Specifications
UPC: 05400712527
Pad Size: 0.89 Inch Length x 0.75 Inch Width
Number Of Pad Holes: 1
Stud Size: 5/16 Inch
Color: Pink
Material: Tin Plated Copper
Overall Length: 2.16 Inch
Approval: UL, CSA
Additional Information: RoHS Compliant; Outer Diameter 0.51 Inch; Used On Copper Conductor; Application Indoor/Outdoor
Catalog Number: 30031
Brand Name: Scotchlok[TM]
Model: 30000
Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 1/0 AWG
Barrel Type: Standard
Barrel Length: 0.81 Inch
Catalog Description: THE 3M SCOTCHLOK COPPER LUGS 30000 SERIES ARE ONE HOLE, STANDARD BARREL LUGS FROM 64/0 AWG DESIGNED FOR TERMINATING COPPER CONDUCTORS. EACH LUG IS TIN PLATED TO RESIST CORROSION AND CAN BE INSTALLED WITH STANDARD INDUSTRY TOOLS. CHAMFERED ENDS ENSURE EASE OF CONDUCTOR INSERTION.
Category: Large Terminals & Connectors
Full Technical Description: Tin Plated Copper Material; Pink Color; 2.16 Inch Overall Length; 0.81 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 1/0 AWG Conductor Size; 5/16 Inch Stud Size; 0.89 Inch Length X 0.75 Inch Width Pad Size; 1 Pad Hole(S); Standard Barrel Type; RoHS Compliant; Outer Diameter 0.51 Inch; Used on Copper Conductor; Application Indoor/Outdoor; 30000 Model
