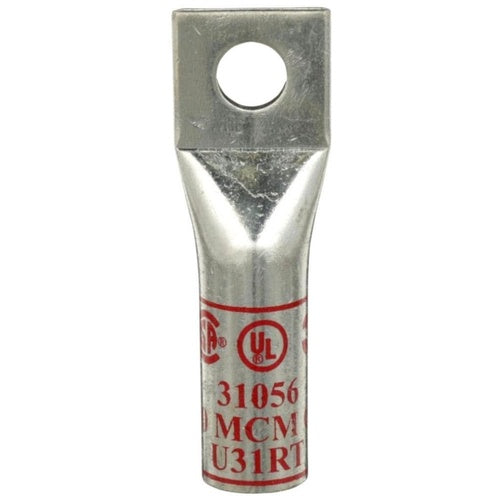

3M 31056 Scotchlok Copper 1-Hole Long Barrel Lug, Up To 35 Kv, 350 Kcmil, Red

Overview

3M 31056 Scotchlok Copper 1-Hole Long Barrel Lug, Up To 35 Kv, 350 Kcmil, Red

Product Specifications

• UPC: 05400712659
• Pad Size: 1.11 Inch Length x 1.27 Inch Width
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Red
• Material: Tin Plated Copper
• Overall Length: 3.85 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Outer Diameter 0.88 Inch; Used On Copper Conductor; Application Indoor/Outdoor
• Catalog Number: 31056
• Brand Name: Scotchlok[TM]
• Model: 31000
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 350 KCMIL
• Barrel Type: Long
• Barrel Length: 1.94 Inch
• Catalog Description: 3M SCOTCHLOK 31000 1 HOLE COMPRESSION LUG IS FOR USE WITH COPPER CONDUCTORS ONLY. THE LONG BARREL ENSURES A SECURE FIT. SEAMLESS COPPER CONSTRUCTION OFFERS HIGH CONDUCTIVITY AND AN ELECTRO TIN PLATED FINISH RESISTS CORROSION. IT IS RATED FOR 35 KV VOLTAGE APPLICATIONS.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Red Color; 3.85 Inch Overall Length; 1.94 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 350 kcmil Conductor Size; 1/2 Inch Stud Size; 1.11 Inch Length X 1.27 Inch Width Pad Size; 1 Pad Hole(S); Long Barrel Type; RoHS Compliant; Outer Diameter 0.88 Inch; Used on Copper Conductor; Application Indoor/Outdoor; 31000 Model
• Manufacturer: 3M Co.
• Manufacturer Brand: 3M Electrical Products
• Sub Category: Compression Cable Lug
• Unspsc: 27121707
• UPC 12 Digit: 054007126591
• SKU Name: 3m 31056
