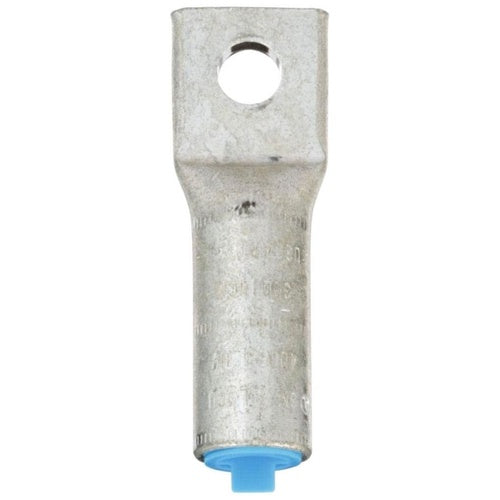

3M 40046 Scotchlok Aluminum 1-Hole Lug, Up To 35 Kv, 4/0 Awg, White
Product Specifications
UPC: 05400713517
Pad Size: 1.344 INCH L X 1.187 INCH W
Number Of Pad Holes: 1
Stud Size: 5/8 INCH
Color: WHITE
Die Index: 296
Material: ALUMINUM
Overall Length: 3.562 INCH
Approval: UL
Additional Information: INSIDE DIAMETER 0.547 INCH; OUTSIDE DIAMETER 0.875;APPLICATION INDOOR, OUTDOOR; OPERATING TEMPERATURE 194 F
Catalog Number: 40046
Brand Name: Scotchlok[T]
Model: 40000
Voltage Rating: 35 KV
Conductor Material: ALUMINUM/COPPER
Conductor Size: 4/0 AWG
Barrel Type: STANDARD
Barrel Length: 1.438 INCH
Catalog Description: 3M SCOTCHLOK 40000 1 HOLE COMPRESSION LUG IS SUITABLE FOR USE ON COPPER OR ALUMINUM CONDUCTORS. THE LUG HAS A STANDARD BARREL THAT ENSURES A SECURE FIT. ALUMINUM CONSTRUCTION OFFERS HIGH CONDUCTIVITY AND AN ELECTRO TIN PLATED FINISH RESISTS CORROSION. IT IS RATED FOR 35 KV VOLTAGE APPLICATIONS.
Category: Large Terminals & Connectors
Full Technical Description: Aluminum Material; White Color; 3.562 Inch Overall Length; 1.438 Inch Barrel Length; Aluminum/Copper Conductor Material; UL Approval; 35 kV Voltage Rating; 4/0 AWG Conductor Size; 5/8 Inch Stud Size; 296 Die Index; 1.344 Inch L X 1.187 Inch W Pad Size; 1 Pad Hole(S); Standard Barrel Type; SCOTCHLOK[T] Brand; Inside Diameter 0.547 Inch; Outside Diameter 0.875;Application Indoor, Outdoor; Operating Temperature 194 F; 40000 Model
