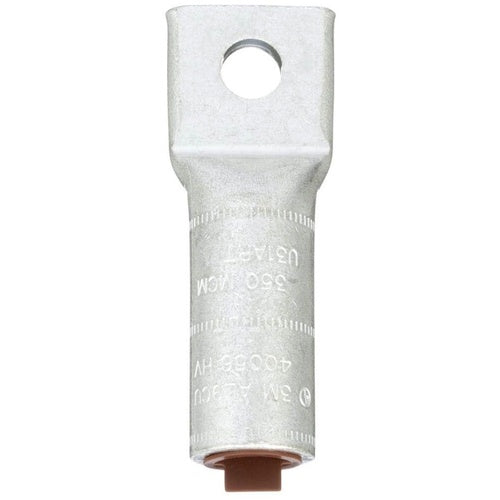

3M 40056 Scotchlok Aluminum 1-Hole Lug, Up To 35 Kv, 350 Kcmil, Brown,

Overview

3M 40056 Scotchlok Aluminum 1-Hole Lug, Up To 35 Kv, 350 Kcmil, Brown,

Product Specifications

• UPC: 05400713558
• Pad Size: 1.313 Inch L x 1.49 Inch W
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Brown
• Die Index: 299/655
• Material: Aluminum
• Overall Length: 4.25 Inch
• Approval: UL, CSA
• Additional Information: Inside Diameter 0.72 Inch; Outside Diameter 1.1 Inch; Used On Aluminum/Copper Conductor; Application Indoor, Outdoor; Operating Temperature 90 Deg C
• Catalog Number: 40056
• Brand Name: Scotchlok[TM]
• Model: 40000
• Voltage Rating: 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 350 KCMIL
• Barrel Type: Standard
• Barrel Length: 2.2 Inch
• Catalog Description: 3M SCOTCHLOK 40000 1 HOLE COMPRESSION LUG IS SUITABLE FOR USE ON COPPER OR ALUMINUM CONDUCTORS. THE LUG HAS A STANDARD BARREL THAT ENSURES A SECURE FIT. ALUMINUM CONSTRUCTION OFFERS HIGH CONDUCTIVITY AND AN ELECTRO TIN PLATED FINISH RESISTS CORROSION. IT IS RATED FOR 35 KV VOLTAGE APPLICATIONS.
• Category: Large Terminals & Connectors
• Full Technical Description: Aluminum Material; Brown Color; 4.25 Inch Overall Length; 2.2 Inch Barrel Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 350 kcmil Conductor Size; 1/2 Inch Stud Size; 299/655 Die Index; 1.313 Inch L X 1.49 Inch W Pad Size; 1 Pad Hole(S); Standard Barrel Type; Inside Diameter 0.72 Inch; Outside Diameter 1.1 Inch; Used on Aluminum/Copper Conductor; Application Indoor, Outdoor; Operating Temperature 90 Deg C; 40000 Model
• Made In Usa: Yes
• Manufacturer: 3M ELECTRICAL MARKET ELECTRICAL PRODUCTS
• Manufacturer Brand: 3M Electrical Products
• Sub Category: Compression Cable Lug
• Unspsc: 27121707
• UPC 12 Digit: 054007135586
• SKU Name: 3m 40056
