Additional Information: Overall Dimension 1.03 Inch L x 0.38 Inch W x 0.04 Inch Thk; Voltage Rating 600 V (Building Wire), 1000 V (Signs, Fixtures); Terminal Material Tin Plated ETP Copper; Barrel Style Brazed Seam
Catalog Number: MV10-10FK
Brand Name: Scotchlok[TM]
Model: MV10
Type: Standard
Minimum Conductor Size: 12 AWG
Maximum Conductor Size: 10 AWG
Color: Yellow
Insulation Type: Vinyl Insulated

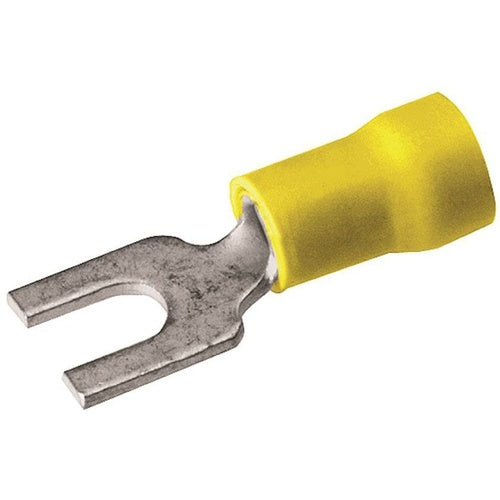

Catalog Description: 3M SCOTCHLOK COLOR-CODED STANDARD FORK IS A LUG CONNECTION TERMINAL THAT HAS A WIDER TONGUE FOR USE ON FREE-STANDING STUDS. THE TERMINAL HAS A VINYL-INSULATED, BRAZED-SEAM BARREL AND WITHSTANDS TEMPERATURES OF -40 TO 221 DEGREES F (-40 TO 105 DEGREES C). ELECTROLYTIC COPPER CONSTRUCTION OFFERS GOOD CONDUCTIVITY AND A TIN-PLATED FINISH RESISTS CORROSION.
Category: Small Terminals & Connectors
Full Technical Description: Standard Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A, CSA C22.2 Approval; -40 to 221 Deg F Temperature Rating; 500 Per Case Standard Package; #10 Stud Size; Vinyl Insulated Insulation Type; Overall Dimension 1.03 Inch L X 0.38 Inch W X 0.04 Inch Thk; Voltage Rating 600 V (Building Wire), 1000 V (Signs, Fixtures); Terminal Material Tin Plated Etp Copper; Barrel Style Brazed Seam; MV10 Model
