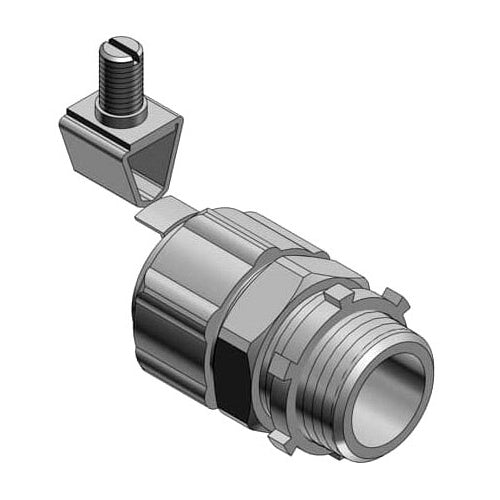

T&B 5236GR 1-1/2" Straight Liquidtight Non-Insulated Ground Connector Steel

Overview

T&B 5236GR 1-1/2" Straight Liquidtight Non-Insulated Ground Connector Steel

Product Specifications

• UPC: 78621089609
• Approval: UL 467/514B, CSA C22.2
• Used On: Liquidtight Flexible Metallic Conduit
• Additional Information: Constructional Feature Corrosion Resistant; Ground Wire Size 4 to 2/0 AWG; Includes Grounding Lug; Application Hazardous Location, Indoor/Outdoor; Applicable Standard NEMA FB-1, Federal Specification A-A-50552/H-28
• Catalog Number: 5236GR
• Brand Name: T&B
• Model: 52
• Type: Straight
• Throat Type: Non-Insulated
• Trade Size: 1-1/2 Inch
• Material: Zinc Electroplated Chromate Coated Steel (Body/Gland/Locknut/Ground Cone), Thermoplastic (Sealing Ring/Insulator), Stainless Steel and Santoprene (Sealing Gasket), Steel (Strap), Bright Dip High-Conductivity Copper (Lug)
• Standard Package: 10 per Outer Pack
• Catalog Description: 1-1/2 INCH STEEL EXTERNAL BONDING LIQUIDTIGHT CONNECTOR, NON-INSULATED, STRAIGHT
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Zinc Electroplated Chromate Coated Steel (Body/Gland/Locknut/Ground Cone), Thermoplastic (Sealing Ring/Insulator), Stainless Steel and Santoprene (Sealing Gasket), Steel (Strap), Bright Dip High-Conductivity Copper (Lug) Material; Liquidtight Flexible Metallic Conduit Used on; UL 467/514B, CSA C22.2 Approval; 10 Per Outer Pack Standard Package; 1-1/2 Inch Trade Size; Non-Insulated Throat Type; REVOLVER[R] Brand; Constructional Feature Corrosion Resistant; Ground Wire Size 4 to 2/0 AWG; Includes Grounding Lug; Application Hazardous Location, Indoor/Outdoor; Applicable Standard NEMA FB-1, Federal Specification A-A-50552/H-28; 52 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210896090
• SKU Name: 5236gr

Resources

• Technical Drawing
• Manufacturer Spec Sheet
