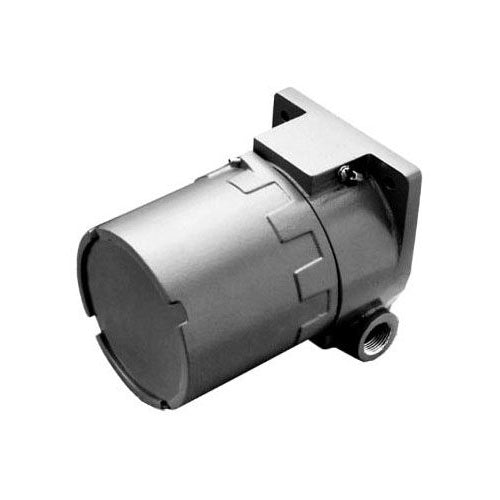

Adalet XIHLFCX Explosion-Proof Instrument Housing/Flat Solid Cover/3/4" Npt Hubs

Overview

Adalet XIHLFCX Explosion-Proof Instrument Housing/Flat Solid Cover/3/4" Npt Hubs

Product Specifications

• Full Technical Description: 5-7/16 Inch W X 5-1/8 Inch D X 5-5/8 Inch H Size; 3/4 Inch Hub Size; UL 1203, CSA C22.2, CENELEC, FM, KEMA Approval; Class I Group B C D, Class II Group E F G, Class III, NEMA 4X/7B/7C/7D/9E/9F/9G, IP66 Enclosure; Flat Solid Cover Type; Sand Cast Copper Free Aluminum Body Material; Corrosion Resistant, Explosion Proof, Tamper Resistant, Water Tight; Blue Polyester Powder Coated Sand Cast Copper Free Aluminum Cover Material; Offset Feed Through Hub Location; Blue Polyester Powder Coated Body Finish; Internal Diameter 4 Inch; XIHL Model
• Manufacturer: ADALET PLM
• Sub Category: Explosionproof Instrument Enclosure
• UPC 12 Digit: 781063222508
• SKU Name: adalet xihlfcx

Resources

• Manufacturer Spec Sheet
