Pad Size: 1-13/16 Inch Length x 2-13/32 Inch Width x 7/16 Inch Thickness
Stud Size: 1/2 Inch
Overall Length: 3-3/16 Inch
Approval: UL 486B, CSA
Additional Information: Height 1-9/16 Inch
Catalog Number: ADR60-21
Brand Name: Blackburn
Type: Dual Rated
Number Of Conductors: 2
Minimum Conductor Size: 2 AWG Stranded
Maximum Conductor Size: 600 KCMIL
Conductor Material: Copper/Aluminum
Pad Type: Straight

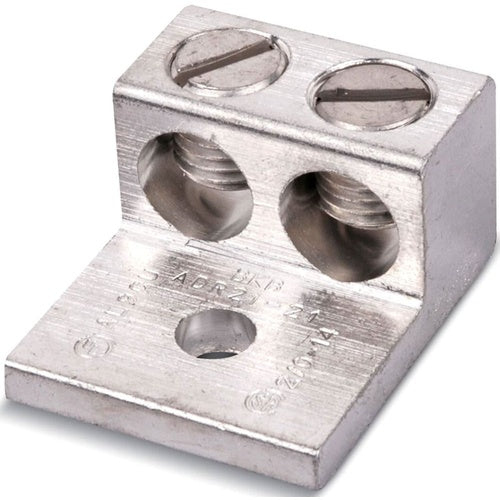

Catalog Description: TYPE ADR-ALCUL TWO-CONDUCTOR, ONE-HOLE MOUNT FOR CONDUCTOR RANGE MAX 600 KCMIL, MIN 2 STR.
Category: Large Terminals & Connectors
Full Technical Description: Dual Rated Type; Tin Plated Aluminum Material; 3-3/16 Inch Overall Length; 2 AWG Stranded min. Conductor Size; 600 kcmil Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486B, CSA Approval; 2 Conductor(S); 1/2 Inch Stud Size; 1-13/16 Inch Length X 2-13/32 Inch Width X 7/16 Inch Thickness Pad Size; 1 Pad Hole(S); Straight Pad Type; Slot Screw Type; Adr-ALCUL[TM] Brand; Height 1-9/16 Inch
