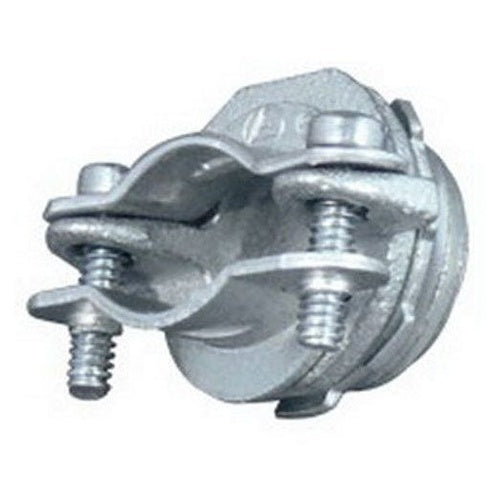

Appleton 15236 1-1/2" Malleable 2-Screw Service Entrance Connector
Product Specifications
UPC: 78138178070
Approval: UL 514B, CSA C22.2
Used On: Non-Metallic Sheathed/Service Entrance Cable
Additional Information: Applicable Standard NEMA FB-1; Includes Locknut
Catalog Number: 15236
Minimum Opening: 0.81 Inch
Maximum Opening: 1.59 Inch
Trade Size: 1-1/2 Inch
Thread Length: 0.75 Inch
Length: 0.81 Inch
Diameter: 2.63 Inch
Material: Malleable Iron
Catalog Description: CONDUIT CONNECTOR, SIZE: 1-1/2 IN, CONNECTION: ARMORED CABLE X FLEXIBLE METAL CONDUIT, CONDUCTOR RANGE: 0.84 - 1.59 IN, MATERIAL: MALLEABLE IRON, HEIGHT: 2.63 IN, WIDTH: 0.81 IN, THREAD LENGTH: 3/4 IN, STANDARD: UL 514B, UL LISTED: E23237,
Category: Service Entrance Cable Fittings
Full Technical Description: 2-Screw, Clamp Type; Zinc Electroplated Malleable Iron Material; 0.81 Inch; Non-Metallic Sheathed/Service Entrance Cable Used on; 0.75 Inch Thread Length; 0.81 Inch min. Opening; 1.59 Inch Max. Opening; UL 514B, CSA C22.2 Approval; 2.63 Inch Diameter; 1-1/2 Inch Trade Size; Includes Locknut; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
