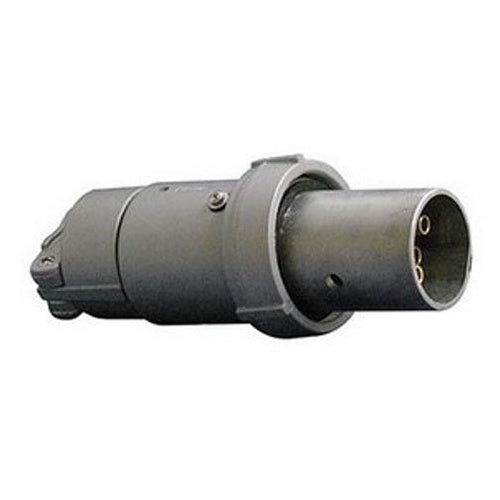

Appleton ACP1022CD 2W-2P Plug

Overview

Appleton ACP1022CD 2W-2P Plug

Product Specifications

• UPC: 78138144012
• Grounding Style: 1, Shell
• Minimum Cable Outer Diameter: 0.875 Inch
• Maximum Cable Outer Diameter: 1.906 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Approval: UL 1682/1689/50E, CSA C22.2
• Additional Information: Contact Material Brass; Application Compressor, Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding
• Catalog Number: ACP1022CD
• Brand Name: Powertite[R]
• Type: Compressor, Motor Generator Unit, Polarized, Pump, Welding, Clamping Ring
• Constructional Feature: Weatherproof
• Voltage Rating: 600 VAC 1-Phase at 50 to 400 Hz, 250 VDC
• Current Rating: 100 Ampere
• Number Of Poles: 2
• Number Of Wires: 2
• Catalog Description: PIN AND SLEEVE PLUG, TYPE COMPRESSOR, GENERATOR, PUMP, WELDER, CLAMPING RING, CONSTRUCTIONAL FEATURE WEATHERPROOF, WATER RESISTANT, VOLTAGE RATING 600 VAC AT 50 TO 400 HZ, 250 VDC, CURRENT RATING 100 AMPERE, NUMBER OF POLES 2, NUMBER OF WIRES 2, GROUNDING STYLE 1, SHELL, MINIMUM CABLE OUTER DIAMETER 0.875 INCH, MAXIMUM CABLE OUTER DIAMETER 1.906 INCH, MATERIAL EPOXY POWDER COATED COPPER-FREE ALUMINUM, APPROVAL UL 1682/1689/50E, CSA C22.2, CONTACT MATERIAL BRASS, APPLICATION COMPRESSOR, GENERATOR UNIT, PUMP, SHIPPING DOCKS, SHIPPING PORTS, WELDING
• Category: Pin & Sleeve Devices
• Full Technical Description: Compressor, Clamping Ring, Motor Generator Unit, Pump, Positive Polarization, Welding Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.875 Inch min. Cable Outer Diameter; 1.906 Inch Max. Cable Outer Diameter; 2 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 100 Amp Current Rating; 2 Pole(S); Weatherproof; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.391 Inch; Contact Material Brass; Finish Fiberglass Reinforced Polyester (Insulating Block); Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381440127
• SKU Name: app acp1022cd
