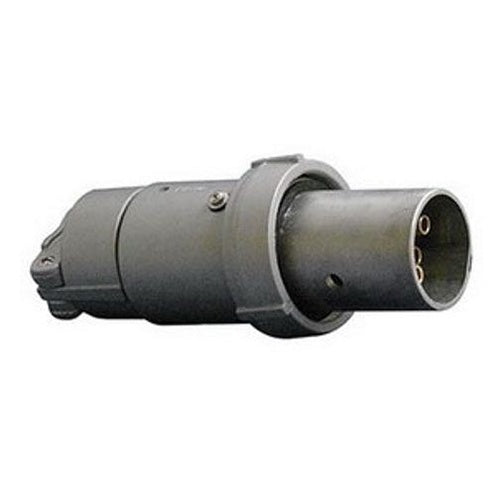

Appleton ACP1044CDRS 4W-4P Plug

Overview

Appleton ACP1044CDRS 4W-4P Plug

Product Specifications

• UPC: 78138171146
• Number Of Wires: 4
• Grounding Style: 1, Shell
• Minimum Cable Outer Diameter: 0.875 Inch
• Maximum Cable Outer Diameter: 1.906 Inch
• Material: Glass Filled Polyester
• Approval: UL, CSA C22.2
• Additional Information: APPLICATION COMPRESSOR, MOTOR GENERATOR UNIT, PUMP, SHIPPING DOCKS, SHIPPING PORTS, WELDING; CONTACT MATERIAL COPPER
• Catalog Number: ACP1044CDRS
• Brand Name: Powertite[R]
• Model: ACP
• Type: Reverse Service, Clamping Ring, Motor Generator Unit, Welder, Pump, Compressor, Cellular Relay Station
• Constructional Feature: Weatherproof
• Voltage Rating: 600 Volt AC, 250 Volt DC
• Current Rating: 100 Amp
• Number Of Poles: 4
• Catalog Description: POWERTITE GROUNDING STYLE 1 CLAMPING RING PLUG, NUMBER OF POLES: 4, NUMBER OF WIRES: 4, WIRE SIZE: 4 - 1 AWG (BUILDING), 4 - 2 AWG (EXTRA FLEX), AMPERAGE RATING: 100 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, M
• Category: Pin & Sleeve Devices
• Full Technical Description: Compressor, Clamping Ring, Motor Generator Unit, Pump, Positive Polarization, Reverse Service, Welding Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.875 Inch min. Cable Outer Diameter; 1.906 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 100 Amp Current Rating; 4 Pole(S); Weatherproof; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.391 Inch; Contact Material Brass; Finish Fiberglass Reinforced Polyester (Insulating Block); Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381711463
• SKU Name: app acp1044cdrs
