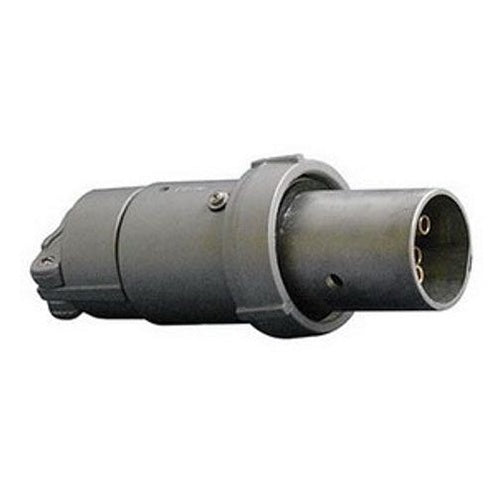

Appleton ACP15034DE 3W4P 150A Plug

Overview

Appleton ACP15034DE 3W4P 150A Plug

Product Specifications

• UPC: 78138110610
• Grounding Style: 2, Shell, Extra Pole
• Minimum Cable Outer Diameter: 1.25 Inch
• Maximum Cable Outer Diameter: 2.187 Inch
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Approval: UL 1682/1689/50E, CSA C22.2
• Additional Information: Contact Material Copper; Enclosure Rating NEMA 3/3R/4/4X
• Catalog Number: ACP15034DE
• Brand Name: Powertite[TM]
• Type: Positive Polarized, Clamping Ring, Compressor, Motor Generator Unit, Pump, Welding
• Constructional Feature: Weatherproof
• Voltage Rating: 600 Volt AC 3-Phase at 50 to 400 Hertz, 250 Volt DC
• Current Rating: 150 Amp
• Number Of Poles: 4
• Number Of Wires: 3
• Catalog Description: POWERTITE GROUNDING STYLE 2 CLAMPING RING PLUG, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, WIRE SIZE: 2 - 2/0 AWG (BUILDING AND EXTRA FLEX), AMPERAGE RATING: 150 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL:
• Category: Pin & Sleeve Devices
• Full Technical Description: Compressor, Motor Generator Unit, Positive Polarization, Cellular Relay Station, Scr/Vfd House Type; Epoxy Powder Coated Copper-Free Aluminum Material; 1.25 Inch min. Cable Outer Diameter; 2.187 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 150 Amp Current Rating; 4 Pole(S); Weatherproof; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.525 Inch; Hub Size 2 Inch; Contact Material Brass; Finish Fiberglass Reinforced Polyester (Insulating Block); Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381106108
• SKU Name: app acp15034de
