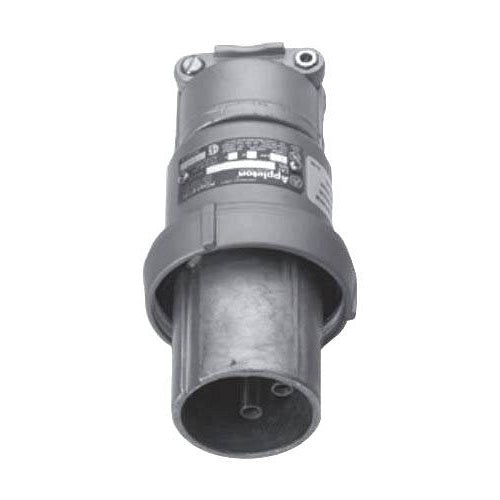

Appleton ACP3023BCRS 30A 2W3P Plug

Overview

Appleton ACP3023BCRS 30A 2W3P Plug

Product Specifications

• UPC: 78138171048
• Number Of Wires: 2
• Grounding Style: Style 1 (Shell), Style 2 (Shell, Extra Pole)
• Minimum Cable Outer Diameter: 0.5 Inch
• Maximum Cable Outer Diameter: 1.25 Inch
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Approval: UL 1682/1689/50E, CSA C22.2
• Additional Information: Contact Material Solid Brass; Enclosure Rating NEMA 3/3R/4/4X; Used On Part Number ACPCAP3034; Applicable Standard NEC/CEC
• Catalog Number: ACP3023BCRS
• Brand Name: Powertite[TM]
• Model: ACP
• Type: Positive Polarized, Reverse Service, Clamping Ring, Compressor, Motor Generator Unit, Pump, Welding
• Constructional Feature: Weatherproof
• Voltage Rating: 600 Volt AC 1-Phase 50 to 400 Hertz, 250 Volt DC
• Current Rating: 30 Amp
• Number Of Poles: 3
• Catalog Description: POWERTITE GROUNDING STYLE 2 METALLIC CLAMPING RING PLUG, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, WIRE SIZE: 10 - 6 AWG (BUILDING), 10 - 8 AWG (EXTRA FLEX), AMPERAGE RATING: 30 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHAS
• Category: Pin & Sleeve Devices
• Full Technical Description: Compressor, Clamping Ring, Motor Generator Unit, Pump, Positive Polarization, Reverse Service, Welding Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.5 Inch min. Cable Outer Diameter; 1.125 Inch Max. Cable Outer Diameter; 2 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 30 Amp Current Rating; 3 Pole(S); Weatherproof; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.281 Inch; Contact Material Brass; Finish Fiberglass Reinforced Polyester (Insulating Block); Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Product Brochure: ht
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381710480
• SKU Name: app acp3023bcrs
