Additional Information: Contact Material Brass; Enclosure Rating NEMA 3/3R/4/4X

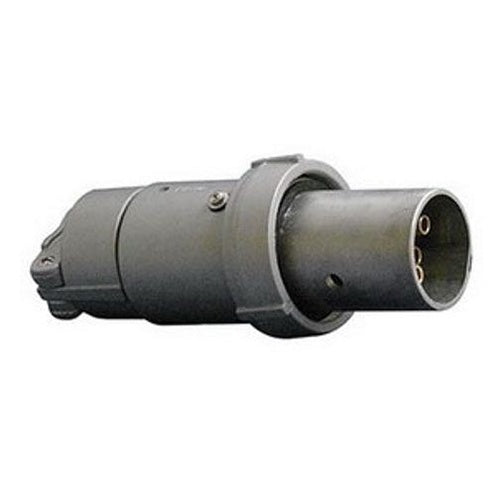

Catalog Number: ACP3034BC
Brand Name: Appleton
Model: ACP
Type: Positive Polarized, Clamping Ring, Compressor, Motor Generator Unit, Pump, Welding
Constructional Feature: Weatherproof
Voltage Rating: 600 Volt AC 3-Phase at 50 to 400 Hertz, 250 Volt DC
Current Rating: 30 Amp
Number Of Poles: 4
Catalog Description: POWERTITE GROUNDING STYLE 2 METALLIC CLAMPING RING PLUG, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, WIRE SIZE: 10 - 6 AWG (BUILDING), 10 - 8 AWG (EXTRA FLEX), AMPERAGE RATING: 30 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE:
Category: Pin & Sleeve Devices
Full Technical Description: Compressor, Motor Generator Set, Pump, Lighting System, Conveyor, Heater, Air Conditioner Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.5 Inch min. Cable Outer Diameter; 1.125 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 894/1010/1203/1682, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 30 Amp Current Rating; 4 Pole(S); Weatherproof; 2, Shell Grounding Style; POWERTITE[TM] Brand; Power Rating 30 HP; Contact Material Brass; Enclosure Rating Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/7CD/9FG; Applicable Standard Nec/Cec; ACP Model
