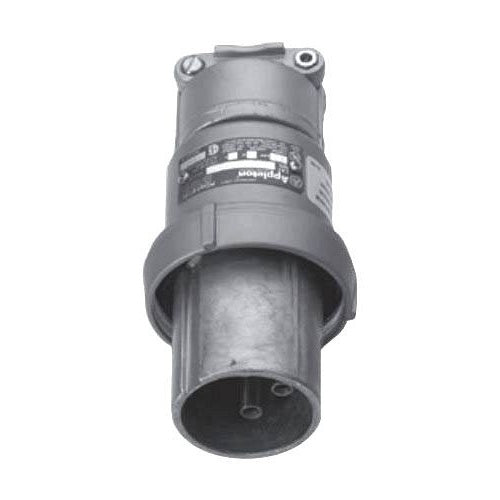

Appleton ACP3044BCRS 30A 4W4P Plug

Overview

Appleton ACP3044BCRS 30A 4W4P Plug

Product Specifications

• UPC: 78138171047
• Minimum Cable Outer Diameter: 0.5 Inch
• Maximum Cable Outer Diameter: 1.25 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Approval: UL 1682/1686, CSA C22.2
• Additional Information: NEMA Rating 4X; Application Compressor, Motor Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding
• Catalog Number: ACP3044BCRS
• Type: Reverse Service, With Clamping Ring
• Constructional Feature: Weatherproof
• Voltage Rating: 600 VAC at 50 to 400 Hz, 250 VDC
• Current Rating: 30 Ampere
• Number Of Poles: 4
• Number Of Wires: 4
• Grounding Style: 1, Shell
• Catalog Description: POWERTITE GROUNDING STYLE 1 METALLIC CLAMPING RING PLUG, NUMBER OF POLES: 4, NUMBER OF WIRES: 4, WIRE SIZE: 10 - 6 AWG (BUILDING), 10 - 8 AWG (EXTRA FLEX), AMPERAGE RATING: 30 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHAS
• Category: Pin & Sleeve Devices
• Full Technical Description: Compressor, Clamping Ring, Motor Generator Unit, Pump, Positive Polarization, Reverse Service, Welding Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.5 Inch min. Cable Outer Diameter; 1.125 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 30 Amp Current Rating; 4 Pole(S); Weatherproof; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.281 Inch; Contact Material Brass; Finish Fiberglass Reinforced Polyester (Insulating Block); Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381710473
• SKU Name: app acp3044bcrs
