Additional Information: Contact Material Brass; Application Compressor, Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding

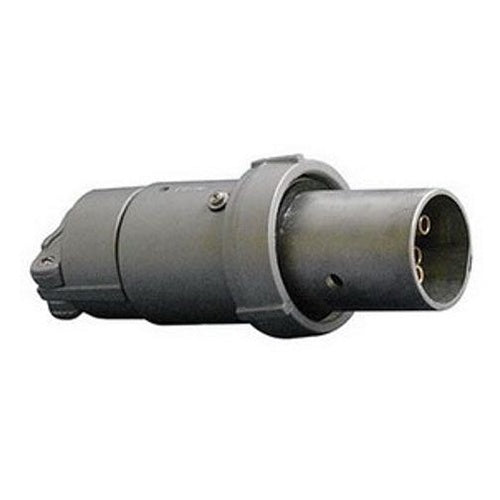

Catalog Number: ACP6022BC
Brand Name: Powertite[R]
Type: Compressor, Motor Generator Unit, Polarized, Pump, Welding, Clamping Ring
Constructional Feature: Weatherproof
Voltage Rating: 600 VAC 1-Phase at 50 to 400 Hz, 250 VDC
Current Rating: 60 Ampere
Number Of Poles: 2
Number Of Wires: 2
Catalog Description: PIN AND SLEEVE PLUG, TYPE COMPRESSOR, GENERATOR, PUMP, WELDER, CLAMPING RING, CONSTRUCTIONAL FEATURE WEATHERPROOF, WATER RESISTANT, VOLTAGE RATING 600 VAC AT 50 TO 400 HZ, 250 VDC, CURRENT RATING 60 AMPERE, NUMBER OF POLES 2, NUMBER OF WIRES 2, GROUNDING STYLE 1, SHELL, MINIMUM CABLE OUTER DIAMETER 0.5 INCH, MAXIMUM CABLE OUTER DIAMETER 1.25 INCH, MATERIAL EPOXY POWDER COATED COPPER-FREE ALUMINUM, APPROVAL UL 1682/1689/50E, CSA C22.2, CONTACT MATERIAL BRASS, APPLICATION COMPRESSOR, GENERATOR UNIT, PUMP, SHIPPING DOCKS, SHIPPING PORTS, WELDING
Category: Pin & Sleeve Devices
Full Technical Description: Compressor, Clamping Ring, Motor Generator Unit, Pump, Positive Polarization, Welding Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.5 Inch min. Cable Outer Diameter; 1.375 Inch Max. Cable Outer Diameter; 2 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 60 Amp Current Rating; 2 Pole(S); Weatherproof; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.312 Inch; Contact Material Brass; Finish Fiberglass Reinforced Polyester (Insulating Block); Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
