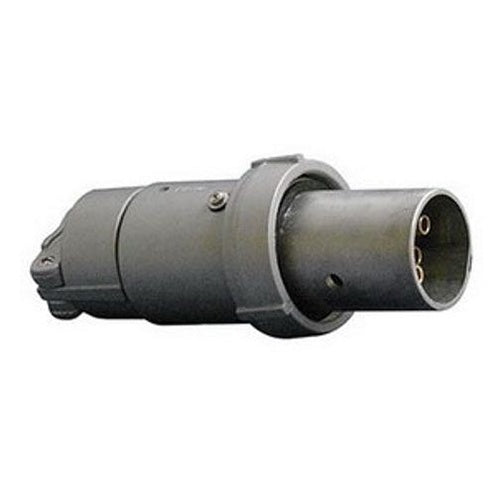

Appleton ACP6023BC 2W-3P Plug

Overview

Appleton ACP6023BC 2W-3P Plug

Product Specifications

• UPC: 78138144019
• Grounding Style: 2, Shell, Extra Pole
• Minimum Cable Outer Diameter: 0.5 Inch
• Maximum Cable Outer Diameter: 1.25 Inch
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Approval: UL 1682/1689/50E, CSA C22.2
• Additional Information: Contact Material Brass; Enclosure Rating NEMA 3/3R/4/4X
• Catalog Number: ACP6023BC
• Brand Name: Powertite[TM]
• Type: Positive Polarized, Clamping Ring, Compressor, Motor Generator Unit, Pump, Welding
• Constructional Feature: Weatherproof
• Voltage Rating: 600 Volt AC 1-Phase at 50 to 400 Hertz, 250 Volt DC
• Current Rating: 60 Amp
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: POWERTITE GROUNDING STYLE 2 METALLIC CLAMPING RING PLUG, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, WIRE SIZE: 6 - 2 AWG (BUILDING), 6 - 4 AWG (EXTRA FLEX), AMPERAGE RATING: 60 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 1
• Category: Pin & Sleeve Devices
• Full Technical Description: Compressor, Clamping Ring, Motor Generator Unit, Pump, Positive Polarization, Welding Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.5 Inch min. Cable Outer Diameter; 1.375 Inch Max. Cable Outer Diameter; 2 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 60 Amp Current Rating; 3 Pole(S); Weatherproof; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.312 Inch; Contact Material Brass; Finish Fiberglass Reinforced Polyester (Insulating Block); Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381440196
• SKU Name: app acp6023bc
