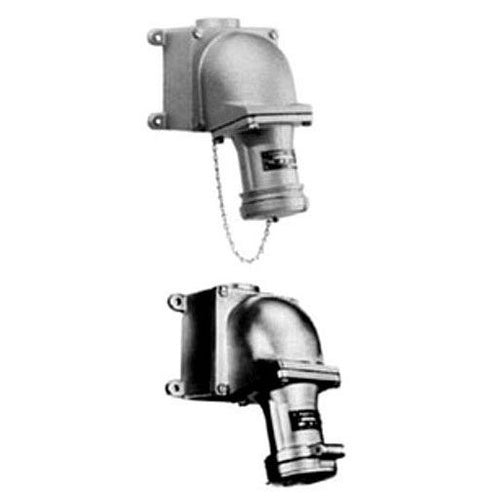

Appleton ADJA6023-100 2W-3P Receptacle

Overview

Appleton ADJA6023-100 2W-3P Receptacle

Product Specifications

• UPC: 78138115729
• Grounding Style: 2, Shell, Extra Pole
• Door Type: Spring Door
• Hub Type: 1 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Additional Information: Application Compressor, Motor Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding; Contact Material Copper
• Catalog Number: ADJA6023-100
• Brand Name: Powertite[R]
• Type: Polarized
• Constructional Feature: Weatherproof
• Voltage Rating: 600 VAC 1-Phase at 50 to 400 Hz, 250 VDC
• Current Rating: 60 Ampere
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: APPLETON POWERTITE GROUNDING STYLE 2 RECEPTACLE WITH AJA MOUNTING BOX, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, WIRE SIZE: 6 - 2 AWG (BUILDING), 6 - 4 AWG (EXTRA FLEX), AMPERAGE RATING: 60 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 1 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, NEMA RATING: NEMA 3, 3R, 4, 4X, MOUNTING: SURFACE MOUNT WITH 1 IN HUB, CONNECTION: PRESSURE WIRE TERMINAL, TEMPERATURE RATING: -40 TO 107 DEG C, MOTOR HORSEPOWER: 20 HP AT 600 VAC, FINISH: EPOXY POWDER COAT, DIMENSIONS: 7.88 IN WIDTH X 9.63 IN HEIGHT X 8 IN DEPTH, STANDARD: UL 1682, UL 1686, UL 50E, UL LISTED: E145916, E145917, CSA STANDARD: C22.2 NO. 182.1, CSA CERTIFIED: 065179, NEMA FB11, FOR ACP6023BC METALLIC CLAMPING RING PLUG
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); 600 Volt AC 50/400 Hertz 1-Phase, 250 Volt DC Voltage Rating; 60 Amp Current Rating; 3 Pole(S); Weatherproof, Rain Tight; 1 Inch Hub Type; Spring; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Size 6 to 2 AWG (Building), 6 to 4 AWG (Extra Flexible); Wire Recess Diameter 0.312 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 3/4/4X/Fb-11; Ambient Temperature Rating -13 to 104 Deg F; I
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381157292
• SKU Name: app adja6023100
