Voltage Rating: 600 Volt AC at 50 to 400 Hertz 1-Phase, 250 Volt DC
Current Rating: 30 Amp
Number Of Poles: 3
Number Of Wires: 2

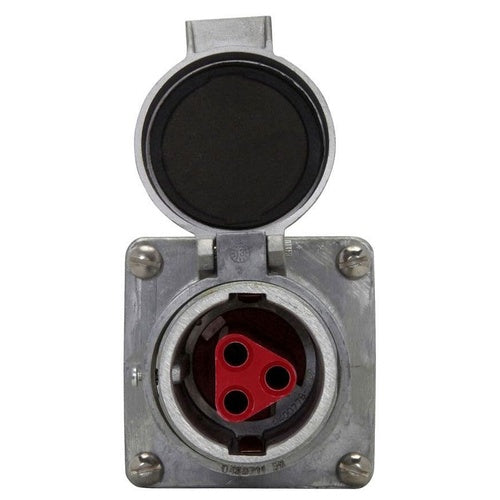

Catalog Description: POWERTITE GROUNDING STYLE 2 RECEPTACLE, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, WIRE SIZE: 10 - 6 AWG (BUILDING), 10 - 8 AWG (EXTRA FLEX), AMPERAGE RATING: 30 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 1 PH, MATERIAL: CO
Category: Pin & Sleeve Devices
Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 1-Phase, 250 Volt DC Voltage Rating; 30 Amp Current Rating; 3 Pole(S); Weatherproof, Rain Tight; Spring, Screw Cap; 2, Shell, Extra Pole Grounding Style; POWERTITE[TM] Brand; Wire Size 10 to 6 AWG (Building), 10 to 8 AWG (Extra Flexible); Wire Recess Diameter 0.281 Inch; Insulating Block Material Natural Glass Filled Polyester; Spring Material Brass With Beryllium Copper; Enclosure Rating NEMA 3/4/4X; Ambient Temperature Rating -13 to 104 Deg F; Applicable Standard Nec/Cec
