Voltage Rating: 600 VAC 1 PHASE AT 50 TO 400 HZ, 250 VDC
Current Rating: 60 AMPERE
Number Of Poles: 2
Number Of Wires: 2

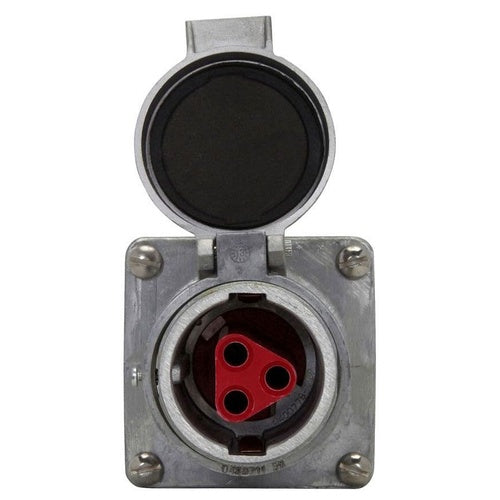

Catalog Description: PIN AND SLEEVE RECEPTACLE, TYPE POLARIZED, CONSTRUCTIONAL FEATURE WEATHERPROOF, WATER RESISTANT, VOLTAGE RATING 600 VAC 3 PHASE AT 50 TO 400 HZ, 250 VDC, CURRENT RATING 60 AMPERE, NUMBER OF POLES 2, NUMBER OF WIRES 2, GROUNDING STYLE 1, SHELL, DOOR TYPE SPRING DOOR, MATERIAL EPOXY POWDER COATED COPPER-FREE ALUMINUM, GRADE SHIPPING, APPROVAL UL 1682/1686/50E, CSA C22.2, WIRE SIZE 6 TO 2 AWG, SPRING MATERIAL BRASS WITH BERYLLIUM COPPER
Category: Pin & Sleeve Devices
Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 1-Phase, 250 Volt DC Voltage Rating; 60 Amp Current Rating; 2 Pole(S); Weatherproof, Rain Tight; Spring, Screw Cap; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Size 6 to 2 AWG (Building), 6 to 4 AWG (Extra Flexible); Wire Recess Diameter 0.312 Inch; Insulating Block Material Natural Glass Filled Polyester; Spring Material Brass With Beryllium Copper; Enclosure Rating NEMA 3/4/4X; Ambient Temperature Rating -13 to 104 Deg F; Applicable Standard Nec/Cec
