Body Material: Epoxy Powder Coated Copper-Free Aluminum
Number Of Mounting Lugs: 4
Hub Size: 1-1/2 Inch Feed-Through
Approval: UL 1682

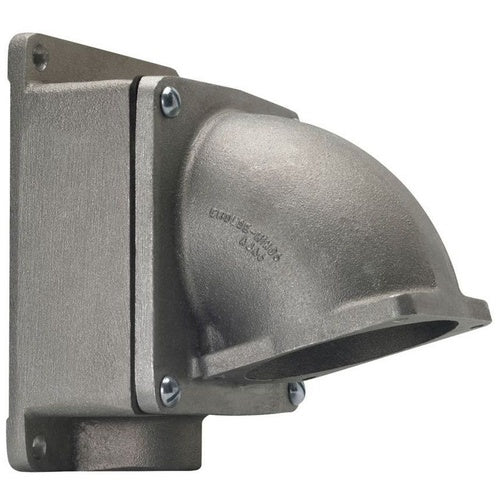

Catalog Description: MOUNTING BOX WITH ANGLE ADAPTER, NUMBER OF OUTLET: 1, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 1-1/2 IN, CABLE ENTRY: (1) 1-1/2 IN HUB, KNOCKOUTS: NO, FINISH: EPOXY POWDER COAT, WIDTH: 7.88 IN, DEPTH: 8 IN, FOR POWERTIT
Category: Pin & Sleeve Devices
Full Technical Description: With Angle Opening Type; Pin and Sleeve Receptacle Used on; 1-1/2 Inch Feed-Through Hub Size; UL 1682/1686/50E, UL (Canada and Us), CSA C22.2 Approval; Epoxy Powder Coated Copper-Free Aluminum Body Material; 60/100/150 Amp Device Rating; 4 Mounting Lug(S); Overall Dimension 7.88 Inch Width X 8 Inch Depth X 5.88 Inch Height; Temperature Rating -13 to 104 Deg F; Enclosure Rating NEMA 3/4/4X/Fb-1; Application Motor Generator Unit, Welder, Pump, Compressor, Cellular Relay Station, Ship to Shore; Applicable Standard Nec/Cec
