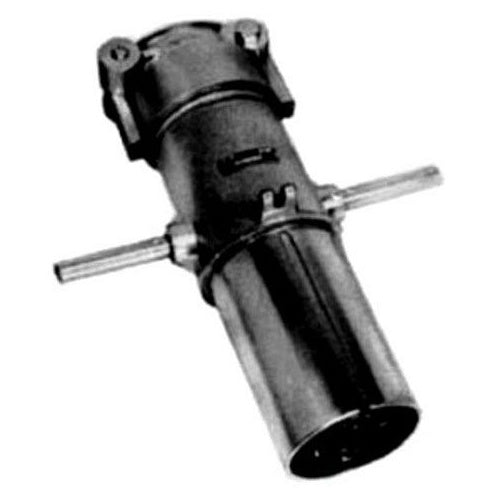

Appleton AP40144G 4W-4P Plug

Overview

Appleton AP40144G 4W-4P Plug

Product Specifications

• UPC: 78138129566
• Grounding Style: 1, Shell
• Minimum Cable Outer Diameter: 3 Inch
• Maximum Cable Outer Diameter: 3.5 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Approval: UL 1682/1689/50E, CSA C22.2
• Additional Information: Contact Material Copper; Application Compressor, Motor Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding
• Catalog Number: AP40144G
• Brand Name: Powertite[R]
• Type: Compressor, Motor Generator Unit, Polarized, Pump, Welding, Spring Door
• Constructional Feature: Raintight
• Voltage Rating: 600 VAC 3-Phase, 250 VDC
• Current Rating: 400 Ampere
• Number Of Poles: 4
• Number Of Wires: 4
• Catalog Description: POWERTITE GROUNDING STYLE 1 PLUG, NUMBER OF POLES: 4, NUMBER OF WIRES: 4, WIRE SIZE: 400 - 1000 MCM, AMPERAGE RATING: 400 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALU
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Inch min. Cable Outer Diameter; 3.5 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 400 Amp Current Rating; 4 Pole(S); Weatherproof; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 1.25 Inch; Hub Size 4 Inch; Finish Fiberglass Reinforced Polyester (Insulating Block); Operating Temperature Rating -13 to 104 Deg F; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381295666
• SKU Name: app ap40144g
