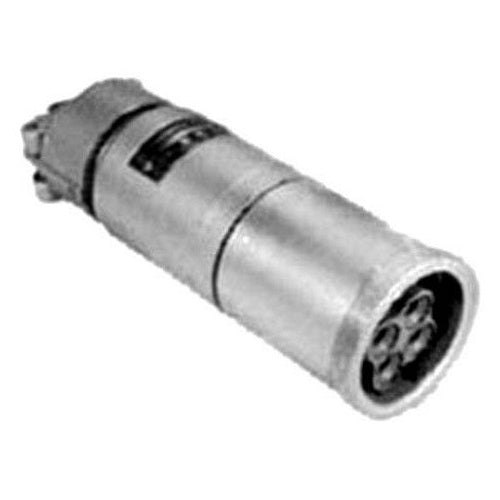

Appleton ARC1023CD 2W-3P Connector Body

Overview

Appleton ARC1023CD 2W-3P Connector Body

Product Specifications

• UPC: 78138144048
• Grounding Style: 2, SHELL, EXTRA POLE
• Minimum Cable Outer Diameter: 0.875 INCH
• Maximum Cable Outer Diameter: 1.906 INCH
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM
• Additional Information: AREA OF APPLICATION SHIPPING; CONTACT MATERIAL COPPER
• Catalog Number: ARC1023CD
• Brand Name: Powertite[R]
• Type: COMPRESSOR, MOTOR GENERATOR UNIT, POLARIZED, PUMP, WELDING
• Constructional Feature: RAIN TIGHT
• Voltage Rating: 600 VAC AT 50 TO 400 HZ/250 VDC
• Current Rating: 100 AMPERE
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: POWERTITE GROUNDING STYLE 2 CONNECTOR BODY, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, WIRE SIZE: 4 - 1 AWG (BUILDING), 4 - 2 AWG (EXTRA FLEX), AMPERAGE RATING: 100 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 1 PH, MATERIA
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization, Circuit Breaking, Compressor, Motor Generator Unit, Pump, Welder, Cellular Relay Station Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.875 Inch min. Cable Outer Diameter; 1.906 Inch Max. Cable Outer Diameter; 2 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 100 Amp Current Rating; 3 Pole(S); Weatherproof; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.391 Inch; Contact Material Copper; Insulating Block Material Fiberglass Reinforced Polyester; Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Connector
• Unspsc: 39121406
• UPC 12 Digit: 781381440486
• SKU Name: app arc1023cd
