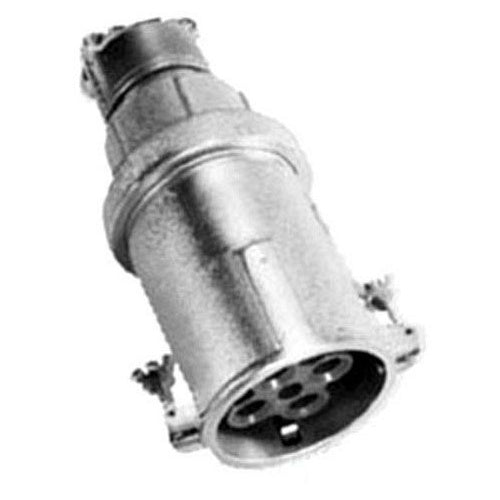

Appleton ARC20033E 3W-3P Connector Body

Overview

Appleton ARC20033E 3W-3P Connector Body

Product Specifications

• UPC: 78138144766
• Grounding Style: 1, Shell
• Minimum Cable Outer Diameter: 1.875 Inch
• Maximum Cable Outer Diameter: 2.5 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Approval: UL1682/1686/50E, CSA C22.2
• Additional Information: Contact Material Copper; Enclosure NEMA 4X; Application ShippingDock,Port; Applicable Standard NEMA FB-11
• Catalog Number: ARC20033E
• Brand Name: Powertite[R]
• Type: Compressor, Motor Generator Unit, Pump, Welder, Cellular Relay Station
• Constructional Feature: Raintight
• Voltage Rating: 600 VAC at 50 to 400 Hz, 250 VDC
• Current Rating: 200 Ampere
• Number Of Poles: 3
• Number Of Wires: 3
• Catalog Description: POWERTITE GROUNDING STYLE 1 CONNECTOR BODY, NUMBER OF POLES: 3, NUMBER OF WIRES: 3, WIRE SIZE: 2/0 AWG - 250 MCM, AMPERAGE RATING: 200 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PC
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization, Circuit Breaking, Compressor, Motor Generator Unit, Pump, Welder, Cellular Relay Station Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.875 Inch min. Cable Outer Diameter; 2.5 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 200 Amp Current Rating; 3 Pole(S); Weatherproof; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.687 Inch; Contact Material Copper; Insulating Block Material Fiberglass Reinforced Polyester; Enclosure Rating NEMA 4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Connector
• Unspsc: 39121406
• UPC 12 Digit: 781381447669
• SKU Name: app arc20033e
