Additional Information: Contact Material Copper; Enclosure NEMA 4X; Application ShippingDock,Port; Applicable Standard NEMA FB-11
Catalog Number: ARC6023BC
Brand Name: Powertite[R]
Type: Compressor, Motor Generator Unit, Pump, Welder, Cellular Relay Station
Constructional Feature: Raintight
Voltage Rating: 600 VAC at 50 to 400 Hz, 250 VDC
Current Rating: 60 Ampere
Number Of Poles: 3
Number Of Wires: 2

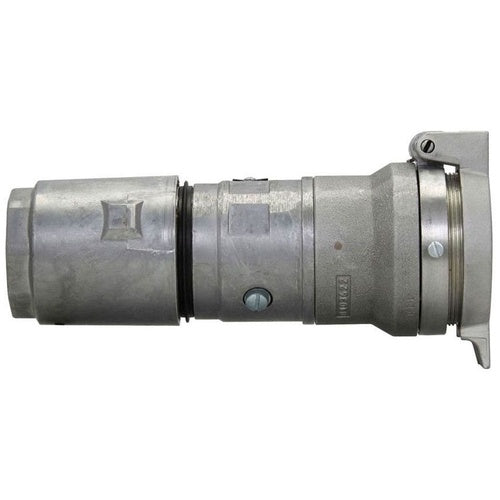

Catalog Description: POWERTITE GROUNDING STYLE 2 CONNECTOR BODY, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, WIRE SIZE: 6 - 2 AWG (BUILDING), 6 - 4 AWG (EXTRA FLEX), AMPERAGE RATING: 60 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 1 PH, MATERIAL
Category: Pin & Sleeve Devices
Full Technical Description: Positive Polarization, Circuit Breaking, Compressor, Motor Generator Unit, Pump, Welder, Cellular Relay Station Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.5 Inch min. Cable Outer Diameter; 1.375 Inch Max. Cable Outer Diameter; 2 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 60 Amp Current Rating; 3 Pole(S); Weatherproof; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.312 Inch; Insulating Block Material Fiberglass Reinforced Polyester; Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
