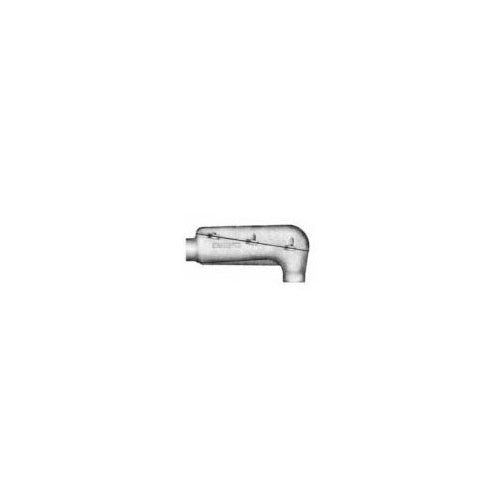

Appleton BLB250-M 2-1/2" Malleable LB Mogul Unilet (Body, Cover & Gasket)

Overview

Appleton BLB250-M 2-1/2" Malleable LB Mogul Unilet (Body, Cover & Gasket)

Product Specifications

• UPC: 78138147429
• Size: 17.88 Inch L x 5.88 Inch W x 8 Inch H
• Installation: Threaded
• Material: Electro Zinc Plated Dichromate Epoxy Powder Coated Malleable Iron Body, Neoprene Gasket, Stainless Steel Screw
• Approval: UL 514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1; Capacity 210 Cu Inch; Application Pulling of Large and Heavy Conductor, Pulling Straight/45 Deg/90 Deg Angle Turn and/or Making Tap and Splice
• Catalog Number: BLB250-M
• Brand Name: Unilet[R]
• Access Opening: Back
• Configuration: LB
• Cover Type: Electro Zinc Plated Dichromate Epoxy Powder Coated Malleable Iron
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 2-1/2 Inch
• Catalog Description: MOGUL UNILETS TYPE LB NEC 6X CONDUIT OUTLET BODY WITH ASSEMBLED COVER AND GASKET, HUB SIZE: 2-1/2 IN, LENGTH: 17.88 IN, WIDTH: 5.88 IN, HEIGHT: 8 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY PO
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Screw) Material; 17.88 Inch Length X 5.88 Inch Width X 8 Inch Height Size; Imc/Threaded Rigid Metal Conduit Used on; 2-1/2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514B, CSA C22.2 Approval; 90 Degree Hub Location; Back Access Opening; UNILETS[R] Brand; Wire Size (3) 400 MCM; Capacity 210 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC 6X/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381474290
• SKU Name: app blb250m
