Additional Information: Application Pulling of Large and Heavy Conductor, Pulling Straight/45 or 90 Degree Angle Turn and Making Tap and Splice; Applicable Standard NEMA FB-1
Catalog Number: BLB300-M
Brand Name: Appleton
Model: LB
Access Opening: Back
Configuration: LB
Cover Type: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
Hub Location: 90 Degree
Number Of Hubs: 2

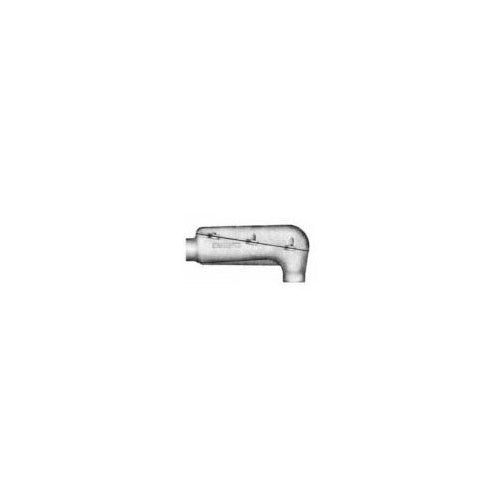

Catalog Description: MOGUL UNILETS TYPE LB NEC 6X CONDUIT OUTLET BODY WITH ASSEMBLED COVER AND GASKET, HUB SIZE: 3 IN, LENGTH: 21.06 IN, WIDTH: 5.88 IN, HEIGHT: 10 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDE
Category: Steel Conduit Bodies & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Screw) Material; 21.06 Inch Length X 5.88 Inch Width X 10 Inch Height Size; Imc/Threaded Rigid Metal Conduit Used on; 3 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514B, CSA C22.2 Approval; 90 Degree Hub Location; Back Access Opening; UNILETS[R] Brand; Wire Size (3) 700 MCM; Capacity 345 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC 6X/Cec, NEMA FB-1
