Additional Information: Applicable Standard NEMA FB-1; Capacity 500 Cu Inch; Application Pulling of Large and Heavy Conductor, Pulling Straight/45 Deg/90 Deg Angle Turn and/or Making Tap and Splice

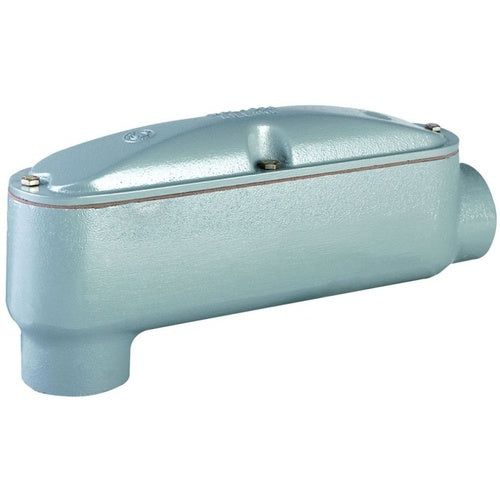

Catalog Description: IMC/RIGID MOGUL CONDUIT BODY, ACCESS OPENING BACK, CONFIGURATION LB, COVER TYPE EPOXY POWDER COATED COPPER FREE ALUMINUM, HUB LOCATION 90 DEG, NUMBER OF HUBS 2, HUB SIZE 3-1/2 INCH, SIZE 24.31 INCH L X 7 INCH W X 10.25 INCH H, INSTALLATION THREADED, MATERIAL EPOXY POWDER COATED COPPER FREE ALUMINUM BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW, FORM TYPE MOGUL, APPROVAL UL 514B/E2527, CSA C22.2, USED ON IMC/RIGID CONDUIT, APPLICABLE STANDARD NEC/CEC, NEMA FB-1, CAPACITY 500 CU INCH
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum (Body), Stainless Steel (Screw) Material; 24.31 Inch Length X 7 Inch Width X 10.25 Inch Height Size; Imc/Threaded Rigid Metal Conduit Used on; 3-1/2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514B, CSA C22.2 Approval; 90 Degree Hub Location; Back Access Opening; UNILETS[R] Brand; Wire Size (3) 900 MCM; Capacity 500 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC 6X/Cec, NEMA FB-1
