Additional Information: Applicable Standard NEMA FB-1; Capacity 31 Cu Inch; Application Pulling of Large and Heavy Conductor, Pulling Straight/45 Deg/90 Deg Angle Turn and/or Making Tap and Splice

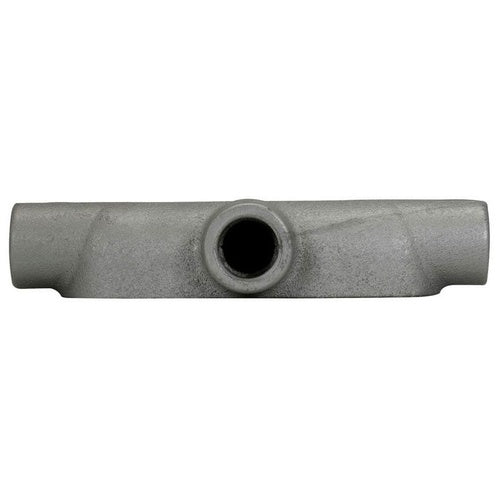

Catalog Description: MOGUL UNILETS TYPE T NEC 8X CONDUIT OUTLET BODY WITH ASSEMBLED COVER AND GASKET, HUB SIZE: 1 IN, LENGTH: 9.81 IN, WIDTH: 3-1/4 IN, HEIGHT: 2-3/4 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWD
Category: Steel Conduit Bodies & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Screw) Material; 9.81 Inch Length X 3.25 Inch Width X 2.75 Inch Height Size; Imc/Threaded Rigid Metal Conduit Used on; 1 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514B, CSA C22.2 Approval; Tee Hub Location; Side Access Opening; UNILETS[R] Brand; Wire Size (3) 4 AWG; Capacity 31 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC 8X/Cec, NEMA FB-1
