Additional Information: Applicable Standard NEMA FB-1; Capacity 50 Cu Inch; Application Pulling of Large and Heavy Conductor, Pulling Straight/45 Deg/90 Deg Angle Turn and/or Making Tap and Splice

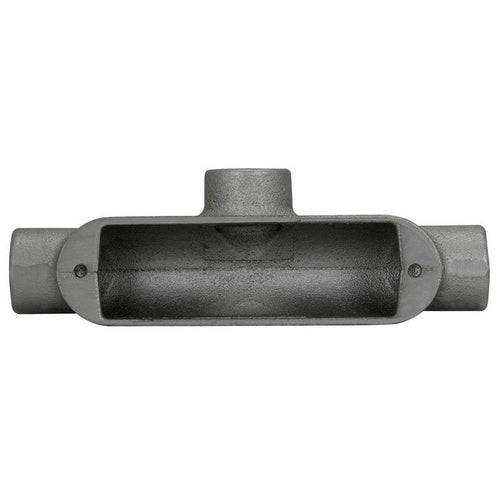

Catalog Description: IMC/RIGID MOGUL CONDUIT BODY, ACCESS OPENING TEE SIDE, CONFIGURATION T, COVER TYPE ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, HUB LOCATION TEE, NUMBER OF HUBS 3, HUB SIZE 1-1/4 INCH, SIZE 12 INCH L X 3.38 INCH W X 3.31 INCH H, INSTALLATION THREADED, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW, FORM TYPE MOGUL, APPROVAL UL 514B/E2527, CSA C22.2, USED ON IMC/RIGID CONDUIT, APPLICABLE STANDARD NEC/CEC, NEMA FB-1, CAPACITY 50 CU INCH
Category: Steel Conduit Bodies & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Screw) Material; 12 Inch Length X 3.38 Inch Width X 3.31 Inch Height Size; Imc/Threaded Rigid Metal Conduit Used on; 1-1/4 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514B, CSA C22.2 Approval; Tee Hub Location; Side Access Opening; UNILETS[R] Brand; Wire Size (3) 2 AWG; Capacity 50 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC 8X/Cec, NEMA FB-1
