Additional Information: Capacity 93 Cubic Inch; Application Pulling of Large and Heavy Conductor, Pulling Straight/45 or 90 Degree Angle Turn and Making Tap and Splice; Applicable Standard NEMA FB-1

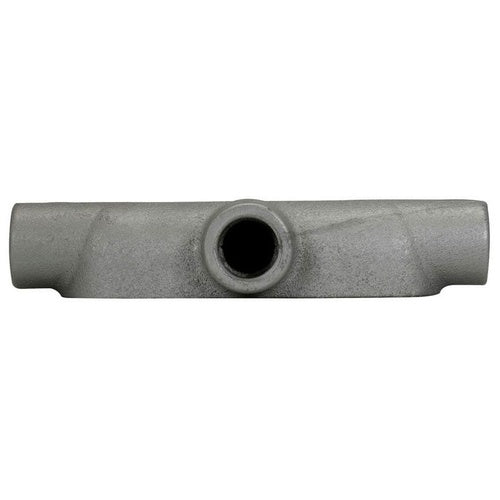

Catalog Description: IMC/RIGID MOGUL CONDUIT BODY, ACCESS OPENING TEE SIDE, CONFIGURATION T, COVER TYPE EPOXY POWDER COATED COPPER FREE ALUMINUM, HUB LOCATION TEE, NUMBER OF HUBS 3, HUB SIZE 1-1/2 INCH, SIZE 13.94 INCH L X 4.13 INCH W X 3.75 INCH H, INSTALLATION THREADED, MATERIAL EPOXY POWDER COATED COPPER FREE ALUMINUM BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW, FORM TYPE MOGUL, APPROVAL UL 514B/E2527, CSA C22.2, USED ON IMC/RIGID CONDUIT, APPLICABLE STANDARD NEC/CEC, NEMA FB-1, CAPACITY 93 CU INCH
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum (Body), Stainless Steel (Screw) Material; 13.94 Inch Length X 4.13 Inch Width X 3.75 Inch Height Size; Imc/Threaded Rigid Metal Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514B, CSA C22.2 Approval; Tee Hub Location; Side Access Opening; UNILETS[R] Brand; Wire Size (3) 1/0 AWG; Capacity 93 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC 8X/Cec, NEMA FB-1
