Additional Information: FEDERAL SPECIFICATION W-C-586B
Catalog Number: BUB200-A
Brand Name: Unilet[R]
Model: UB
Access Opening: Back
Configuration: UB
Cover Type: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
Hub Location: 45 Degree
Number Of Hubs: 2

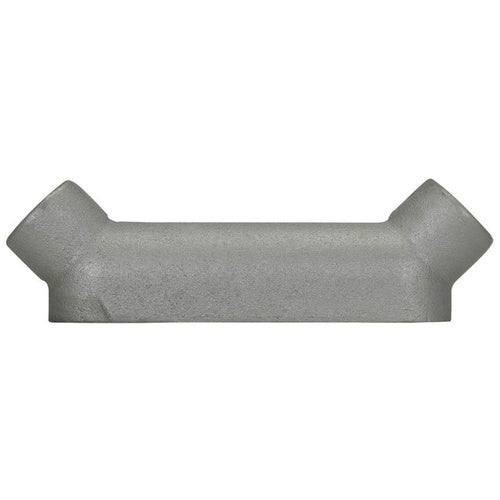

Catalog Description: MOGUL UNILETS TYPE UB NEC 6X CONDUIT OUTLET BODY WITH ASSEMBLED COVER AND GASKET, HUB SIZE: 2 IN, LENGTH: 15-1/4 IN, WIDTH: 3.13 IN, HEIGHT: 5 IN, MATERIAL: ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514B, UL FILE NUMBER E2527, CSA C22.2 NO. 18.3, CSA 065183, NEMA FB-1, FOR USE WITH RIGID METAL CONDUIT AND IMC
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum (Body), Stainless Steel (Screw) Material; 15.25 Inch Length X 3.13 Inch Width X 5 Inch Height Size; Imc/Threaded Rigid Metal Conduit Used on; 2 Inch Hub Size; Threaded Installation; UB Configuration; 2 Hub(S); UL 514B, CSA C22.2 Approval; 45 Degree Hub Location; Back Access Opening; UNILETS[R] Brand; Wire Size (3) 300 MCM; Capacity 134 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC 6X/Cec, NEMA FB-1
