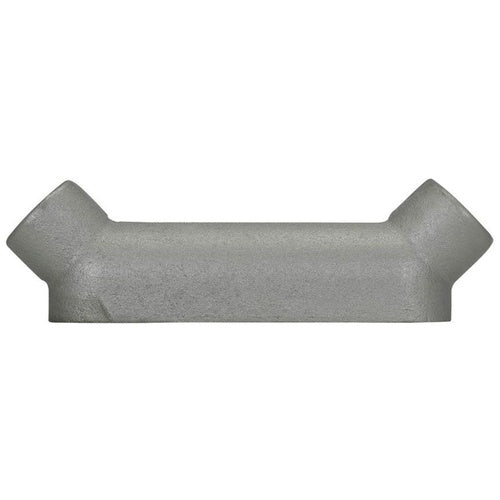

Catalog Description: IMC/RIGID MOGUL CONDUIT BODY, ACCESS OPENING BACK, CONFIGURATION UB, COVER TYPE EPOXY POWDER COATED COPPER FREE ALUMINUM, HUB LOCATION 45 DEG, NUMBER OF HUBS 2, HUB SIZE 3-1/2 INCH, SIZE 30.88 INCH L X 5.63 INCH W X 10.31 INCH H, INSTALLATION THREADED, MATERIAL EPOXY POWDER COATED COPPER FREE ALUMINUM BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW, FORM TYPE MOGUL, APPROVAL UL 514B/E2527, CSA C22.2, USED ON IMC/RIGID CONDUIT, APPLICABLE STANDARD NEC/CEC, NEMA FB-1, CAPACITY 840 CU INCH
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum (Body), Stainless Steel (Screw) Material; 30.88 Inch Length X 5.63 Inch Width X 10.31 Inch Height Size; Imc/Threaded Rigid Metal Conduit Used on; 3-1/2 Inch Hub Size; Threaded Installation; UB Configuration; 2 Hub(S); UL 514B, CSA C22.2 Approval; 45 Degree Hub Location; Back Access Opening; UNILETS[R] Brand; Wire Size (3) 900 MCM; Capacity 840 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC 6X/Cec, NEMA FB-1
