Additional Information: Capacity 4 Cubic Inch; Includes Cover, Gasket; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conductors fo
Catalog Number: C-50ACGA
Brand Name: Appleton
Model: C
Access Opening: Side
Configuration: C
Cover Type: Epoxy Powder Coated Cast Aluminum
Hub Location: Straight
Number Of Hubs: 2

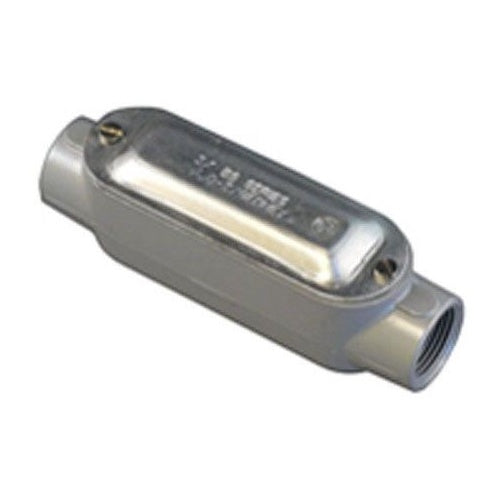

Catalog Description: FORM 85 UNILETS TYPE C CONDUIT OUTLET BODY WITH ASSEMBLED COVER AND GASKET, HUB SIZE: 1/2 IN, FORM: 85, LENGTH: 4-3/4 IN, WIDTH: 1.31 IN, HEIGHT: 1.38 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED F
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Enamel Copper-Free Aluminum (Body), Neoprene (Gasket) Material; 4.75 Inch Length X 1.31 Inch Width X 1.38 Inch Height Size; Imc/Rigid Conduit Used on; 1/2 Inch Hub Size; Threaded Installation; C Configuration; 2 Hub(S); UL 514A, CSA C22.2 Approval; Epoxy Powder Coated Enamel Copper-Free Aluminum Cover Type; Straight Hub Location; Form 85 Form Type; Side Access Opening; UNILETS[R], Form 85[TM] Brand; Enclosure Rating Class I Div 2/2.1; Includes Assembled Cover and Gasket; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
