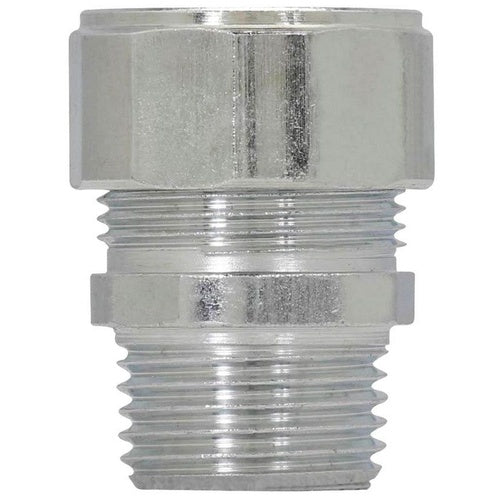

Appleton CG-125125S 1-1/4" Steel Straight Cord Connector

Appleton CG-125125S 1-1/4" Steel Straight Cord Connector

16 in stock

Regular price $37.08 USD
Regular price Sale price $37.08 USD
Sale Sold out
Quantity

Overview

Appleton CG-125125S 1-1/4" Steel Straight Cord Connector

Product Specifications

  • UPC: 78138144954
  • Catalog Number: CG-125125S
  • Model: CG
  • Type: Straight
  • Trade Size: 1-1/4 Inch
  • Material: Machined Steel (Body/Cap), Neoprene (Sealing Grommet), Steel (Washer)
  • Approval: UL, CSA
  • Used On: Wet/Dry Location Sealing Electrical Connection
  • Additional Information: Cable Range 1.25 to 1.375 Inch; Diameter 2.13 Inch; Color Coded Label Green; Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC
  • Catalog Description: STRAIGHT LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 1-1/4 IN, CONDUCTOR RANGE: 1-1/4 - 1-3/8 IN, MATERIAL: MACHINED STEEL, COLOR: GREEN LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, DIMENSIONS: 2.13 IN HEIGHT, STANDARD: CLASS
  • Category: Cable & Cord Grips
  • Full Technical Description: Straight Male Type; Machined Steel (Body/Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 2.13 Inch Diameter Size; CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 1-1/4 Inch Thread Size; 0.125 to 1.375 Inch Cord Size; Label Color Code Green; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
  • Manufacturer: Appleton Electric
  • Manufacturer Brand: Appleton Electric
  • Sub Category: Flexible Cord/Cable Connector
  • Unspsc: 39121431
  • UPC 12 Digit: 781381449540
  • SKU Name: app cg125125s
