Used On: Wet/Dry Location Sealing Electrical Connection
Additional Information: Cable Range 0.5 to 0.625 Inch; Diameter 1.38 Inch; Color Coded Label Pink; Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC

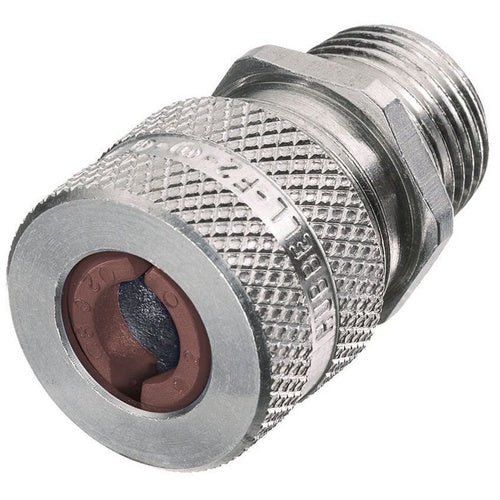

Catalog Description: STRAIGHT LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 1 IN, CONDUCTOR RANGE: 1/2 - 5/8 IN, MATERIAL: ALUMINUM, COLOR: PINK LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, DIMENSIONS: 1.38 IN HEIGHT, STANDARD: CLASS I, DIVISION 2, CL
Category: Cable & Cord Grips
Full Technical Description: Straight Male Type; Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 1.38 Inch Diameter Size; UL 514B, CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 1 Inch Thread Size; 0.5 to 0.625 Inch Cord Size; Label Color Code Pink; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
