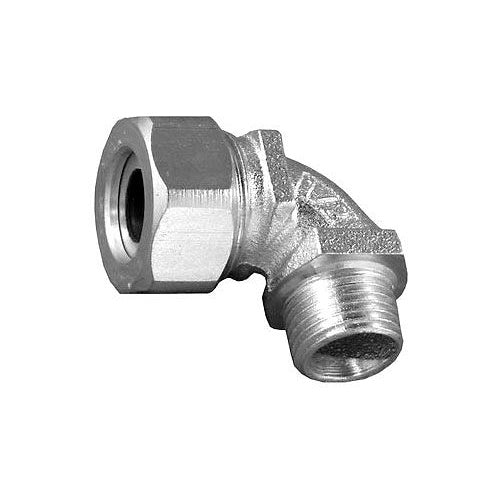

Appleton CG90-125125 1-1/4" Aluminum 90D Cord Connector

Overview

Appleton CG90-125125 1-1/4" Aluminum 90D Cord Connector

Product Specifications

• UPC: 78138119045
• Additional Information: Color Coded Green; NEMA Rating 3R; Includes Hex Head Cap; Applicable Standard Class I, Div 2, Class II, Div 1/2, Class III
• Catalog Number: CG90-125125
• Type: 90 Degree
• Thread Size: 1-1/4 Inch
• Material: Cast Aluminum
• Cord Size: 1.25 to 0.375 Inch
• Size: 2.13 Inch Dia x 2.44 Inch L
• Approval: UL 514B, CSA C22.2
• Application: Neoprene, Hypalon, PVC Jacketed Power Control Cord/Cable, Wet/Dry Location Sealing Electrical Connection, Dust, Dirt, Oil, Water, Atmosphere Containing Moisture
• Catalog Description: 90 DEG LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 1-1/4 IN, CONDUCTOR RANGE: 1-1/4 - 1-3/8 IN, MATERIAL: CAST ALUMINUM, COLOR: GREEN LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, STANDARD: CLASS I, DIVISION 2, CLASS II, DIVIS
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree Male Type; Cast Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 2.13 Inch Diameter Size; CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 1-1/4 Inch Thread Size; 1.25 to 1.375 Inch Cord Size; Label Color Code Green; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381190459
• SKU Name: app cg90125125
