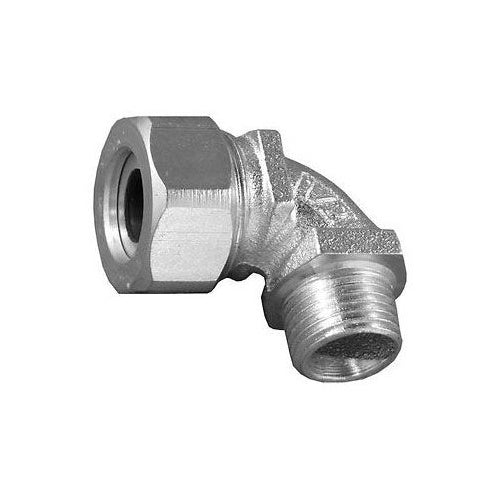

Appleton CG90-2575S 3/4" Steel 90D Cord Connector

Overview

Appleton CG90-2575S 3/4" Steel 90D Cord Connector

Product Specifications

• UPC: 78138144899
• Application: Liquidtight, Strain Relief, Dry/Wet/Hazardous Location
• Additional Information: Color Green
• Catalog Number: CG90-2575S
• Model: CG90
• Type: 90 Deg Male
• Thread Size: 3/4 Inch
• Material: Malleable Iron Body, Machined Steel Cap, Neoprene Grommet, Steel/Teflon Washer
• Cord Size: 0.25 to 0.375 Inch
• Size: 1.38 Inch Dia
• Approval: UL 514B, CSA C22.2
• Catalog Description: 90 DEG LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 3/4 IN, CONDUCTOR RANGE: 1/4 - 3/8 IN, MATERIAL: MALLEABLE IRON, COLOR: GREEN LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, STANDARD: CLASS I, DIVISION 2, CLASS II, DIVISION 1 AND 2 CLASS III, UL 514B, E14817, CSA C22.2 NO. 18.3, 065178, FOR FLEXIBLE TYPE NEOPRENE, HYPALON AND PVC JACKETED POWER OR CONTROL CORD AND CABLE
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree Male Type; Malleable Iron (Body), Machined Steel (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 1.38 Inch Diameter Size; UL 514B, CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 3/4 Inch Thread Size; 0.25 to 0.375 Inch Cord Size; Label Color Code Green; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381448994
• SKU Name: app cg902575s
