Used On: Wet/Dry Location Sealing Electrical Connection
Additional Information: Cable Range 0.625 to 0.75 Inch; Diameter 1.38 Inch; Color Coded Label Orange; Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC

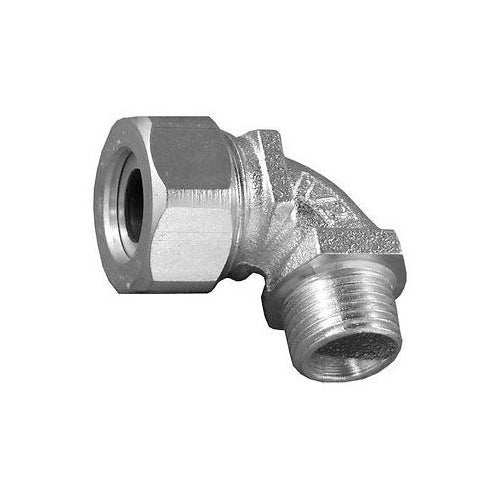

Catalog Description: 90 DEG LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 3/4 IN, CONDUCTOR RANGE: 5/8 - 3/4 IN, MATERIAL: CAST ALUMINUM, COLOR: ORANGE LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, STANDARD: CLASS I, DIVISION 2, CLASS II, DIVISION 1 A
Category: Cable & Cord Grips
Full Technical Description: 90 Degree Male Type; Cast Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 1.38 Inch Diameter Size; CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 3/4 Inch Thread Size; 0.625 to 0.75 Inch Cord Size; Label Color Code Orange; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
