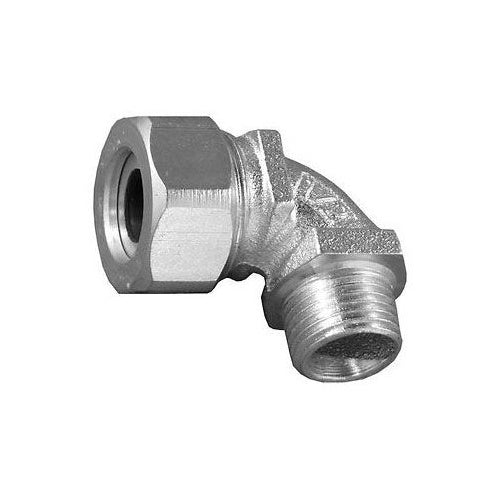

Appleton CG90-75100 1" Aluminum 90D Cord Connector

Overview

Appleton CG90-75100 1" Aluminum 90D Cord Connector

Product Specifications

• UPC: 78138119010
• Application: Liquidtight, Strain Relief, Dry/Wet/Hazardous Location
• Additional Information: Color Gray
• Catalog Number: CG90-75100
• Model: CG90
• Type: 90 Deg Male
• Thread Size: 1 Inch
• Material: Cast Aluminum Body, Copper Free Aluminum Cap, Neoprene Grommet, Steel/Teflon Washer
• Cord Size: 0.75 to 0.875 Inch
• Size: 1.75 Inch Dia
• Approval: UL 514B, CSA C22.2
• Catalog Description: 90 DEG LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 1 IN, CONDUCTOR RANGE: 3/4 - 7/8 IN, MATERIAL: CAST ALUMINUM, COLOR: GRAY LABEL, NEMA RATING: NEMA 3R, CONNECTION: THREADED HUB, STANDARD: CLASS I, DIVISION 2, CLASS II, DIVISION 1 AND
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree Male Type; Cast Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 1.75 Inch Diameter Size; UL 514B, CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 1 Inch Thread Size; 0.75 to 0.875 Inch Cord Size; Label Color Code Gray; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381190107
• SKU Name: app cg9075100
