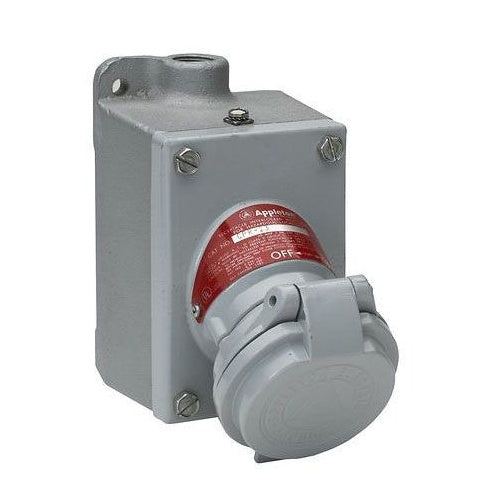

Appleton CPS152R P&S Receptacle L/Box

Overview

Appleton CPS152R P&S Receptacle L/Box

Product Specifications

• UPC: 78138100031
• Enclosure: Class I Div 1 and 2 Group C D
• Approval: UL894/1010
• Additional Information: Includes Cover; Excludes Box; Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump
• Catalog Number: CPS152R
• Brand Name: Contender[R]
• Model: CPS
• Voltage Rating: 125 to 250 VAC, 18 VDC
• Current Rating: 20 Ampere
• Power Rating: 1 HP
• Cover Type: Spring
• Material: EpoxyPowderCoated Copper Free Aluminum Cover
• Catalog Description: CONTENDER CPS SERIES 1-GANG RECEPTACLE, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 125 - 250 VAC, 18 VDC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM COVER, MALLEABLE IRON MOUNTING BOX, MOUN
• Category: Pin & Sleeve Devices
• Full Technical Description: Dead Front Type; Epoxy Powder Coated Copper-Free Aluminum Material; UL 894/1010 Approval; 125/250 Volt AC Voltage Rating; Class I Div 1 and 2 Group C D Enclosure; 20 Amp Current Rating; Spring Cover Type; 1 HP at 18 Volt DC Power Rating; CONTENDER[TM] Brand; Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump; Applicable Standard Nec/Cec; CPS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781381000314
• SKU Name: app cps152r

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
