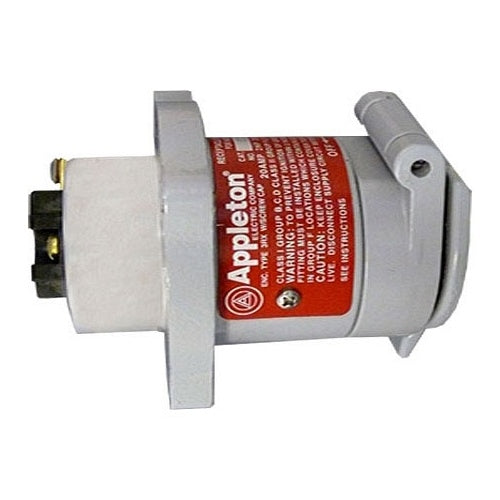

Enclosure: CLASS I DIV 1 AND 2 GROUP C D, NEMA 7C/7D
Catalog Number: CPSR-23
Brand Name: Appleton.
Type: SINGLE GANG/TWO GANG EFD
Voltage Rating: 120 TO 240 VAC, 24 VDC
Current Rating: 20 AMPERE
Power Rating: 1 HP
Number Of Poles: 3
Number Of Wires: 2
Catalog Description: APPLETON CPS SERIES REPLACEMENT RECEPTACLE, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 120 - 240 VAC, 24 VDC, MATERIAL: COPPERFREE (LESS THAN 4/10 OF 1 PCT) ALUMINUM COVER, NEMA RATING: NEMA 3RX, 7BCD, MOUNTIN
Category: Pin & Sleeve Devices
Full Technical Description: Dead Front Type; Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); UL 894/1010 Approval; 120/240 Volt AC, 24 Volt DC Voltage Rating; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group F G, NEMA 7BCD Enclosure; 20 Amp Current Rating; Spring Cover Type; 1 HP Power Rating; 3 Pole(S); Cpp Mating Plug; Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump; Applicable Standard Nec/Cec; CPS Model
Manufacturer: Appleton Electric
Manufacturer Brand: Appleton Electric
Sub Category: Explosionproof Pin and Sleeve Receptacle
