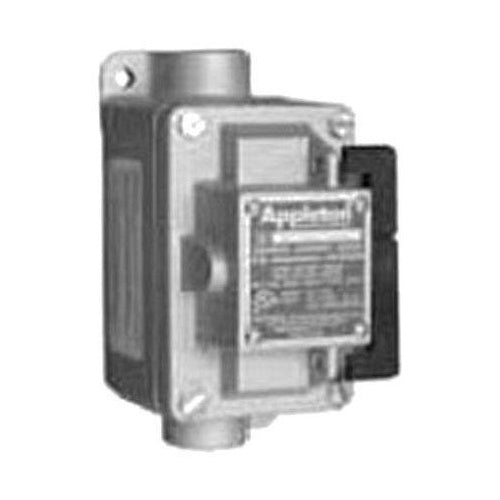

Catalog Description: 2 CIRCUIT UNIVERSAL 1-GANG PUSH BUTTON STATION, CONTACT CONFIGURATION: 2 NO/2 NC, CONTACT RATING: 10 AMP AT 600 VAC, ACTUATOR: ROCKER ARM, ENCLOSURE: NEMA 3, 7CD, 9EFG, MOUNTING: SURFACE MOUNT WITH 3/4 IN DEAD-END HUB, STANDARD: UL 508
Category: Control Station Complete Assemblies
Full Technical Description: Dead End Type; Universal Contact Configuration; 3/4 Inch Hub Size; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Enclosure Material; UL 508/698/1203, UL (Canada and Us) Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 10 Amp Current Rating; Explosionproof, Dust Ignitionproof; Rocker Arm Handle Operator Type; 2 Circuit(S); 1-Gang Box Type; Operation Type Momentary; Overall Dimension 3 Inch Width X 4.5 Inch Depth X 5.38 Inch Height; Includes Internal Ground Screw; Application Chemical/Petrochemical Plant, Refinery, Process Industry; Applicable Standard Nec/Cec; EDS Model
Manufacturer: Appleton Electric
Manufacturer Brand: Appleton Electric
Sub Category: Explosionproof Pushbutton Control Station
