Additional Information: Application Serve as Pulling Fitting, Makes 90 Deg Bend in Conduit Runs
Catalog Number: ELBD125
Brand Name: Unilet[R]
Model: ELBD
Type: Pulling
Trade Size: 1-1/4 Inch
Bend Angle: 90 Deg
Connection Type: Female
Material: Malleable Iron

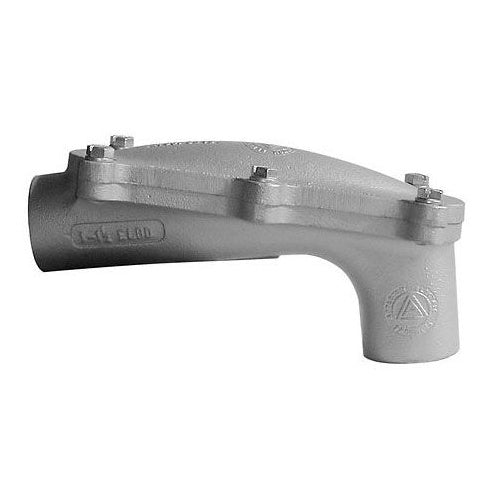

Catalog Description: ELBD SERIES 90 DEG PULLING ELBOW, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), LENGTH: 7.88 IN, TRADE SIZE: 1-1/4 IN, FLEXIBILITY: EMT, CONNECTION: FEMALE THREADED, DIMENSIONS: 3.94 IN WIDTH X 5 IN HEIGHT, STANDARD: UL 886, UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS 1, DIVISION 1 AND 2, GROUP D CLASS II, DIVISION 1 AND 2, GROUPS E, F, G CLASS III, FOR USE WITH METAL CONDUIT
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Malleable Iron Material; Zinc Electroplated/Chromate/Epoxy Powder Coated Finish; UL 886/1203, CSA C22.2 Approval; 1-1/4 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof, Rain Tight; Enclosure Rating Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Metal Conduit; Application Hazardous Location; Applicable Standard NEC; ELBD Model
