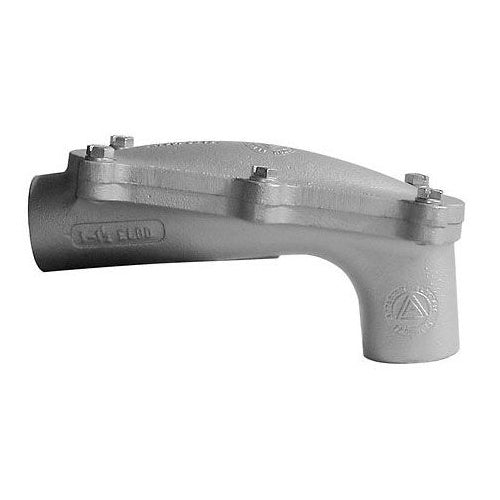

Appleton ELBD350 3-1/2" 90D Pulling Elbow

Overview

Appleton ELBD350 3-1/2" 90D Pulling Elbow

Product Specifications

• UPC: 78138129350
• Finish: Zinc Electroplated, Chromate, Epoxy Powder Coated
• Approval: UL 886, CSA C22.2
• Additional Information: Application Serve as Pulling Fitting, Makes 90 Deg Bend in Conduit Runs
• Catalog Number: ELBD350
• Brand Name: Unilet[R]
• Model: ELBD
• Type: Pulling
• Trade Size: 3-1/2 Inch
• Bend Angle: 90 Deg
• Connection Type: Female
• Material: Malleable Iron
• Catalog Description: EXPLOSIONPROOF CONDUIT ELBOW, TYPE PULLING, TRADE SIZE 3-1/2 INCH, BEND ANGLE 90 DEG, CONNECTION TYPE FEMALE, MATERIAL MALLEABLE IRON, FINISH ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED, APPROVAL UL 886, CSA C22.2, APPLICATION TO PROVIDE ACCESS TO CONDUCTOR FOR PULLING, SPLICING AND MAINTENANCE IN HAZARDOUS LOCATION, USED ON THREADED METAL CONDUIT, SIZE 12.75 INCH H
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Malleable Iron Material; Zinc Electroplated/Chromate/Epoxy Powder Coated Finish; UL 886/1203, CSA C22.2 Approval; 3-1/2 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof, Rain Tight; Enclosure Rating Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Metal Conduit; Application Hazardous Location; Applicable Standard NEC; ELBD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Elbow
• Unspsc: 39131717
• UPC 12 Digit: 781381293501
• SKU Name: app elbd350

Resources

• Manufacturer Spec Sheet
