Additional Information: Application Serve as Pulling Fitting, Makes 90 Deg Bend in Conduit Runs
Catalog Number: ELBY50A
Brand Name: Unilet[R]
Model: ELBY
Type: Capped
Trade Size: 1/2 Inch
Bend Angle: 90 Deg
Connection Type: Female
Material: Aluminum

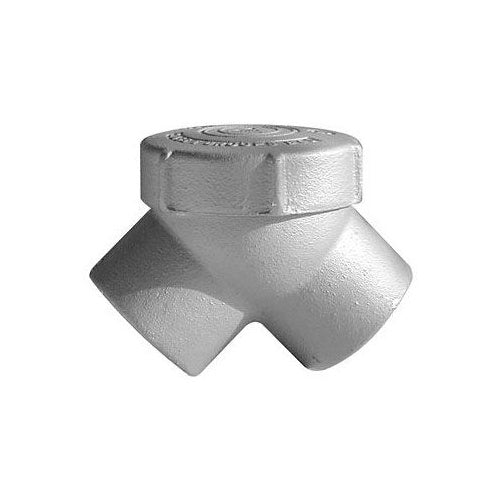

Catalog Description: ELBY SERIES 90 DEG CAPPED ELBOW, MATERIAL: ALUMINUM, FINISH: EPOXY POWDER COAT, LENGTH: 2-3/4 IN, TRADE SIZE: 1/2 IN, FLEXIBILITY: EMT, CONNECTION: FEMALE THREADED, DIMENSION C: 2.06 IN, STANDARD: UL 886, UL FILE NUMBER E10444, CSA C22.2
Category: Rigid Conduit Fittings - Aluminum
Full Technical Description: Capped Type; Aluminum Material; Epoxy Powder Coated Finish; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; 1/2 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; ELBY Model
