Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron
Approval: UL 886, CSA C22.2
Used On: Threaded Rigid Metal Conduit/IMC
Additional Information: Internal Volume 0.76 Inch; Enclosure Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III
Catalog Number: ES10075
Brand Name: Unilet[R]
Model: ES
Type: Tapered Male/Female Threaded
Throat Type: Non-Insulated
Trade Size: 1 Inch (Male Hub), 3/4 Inch (Female Hub)
Size: 1.81 Inch Dia x 2.25 Inch L
Ground Type: Grounding

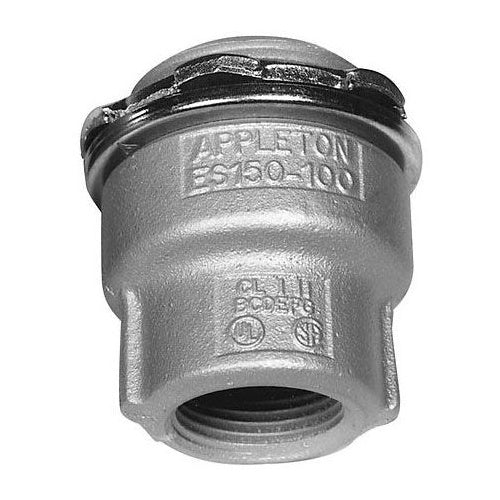

Catalog Description: UNILETS SEALING HUB, SIZE: 3/4 X 1 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED MNPT X TAPERED FNPT, CUBIC CAPACITY: 0.76 CU-IN, LENGTH: 2-1/4 IN, HEIGHT: 1.81
Category: Cast Boxes
Full Technical Description: Tapered Male/Female Threaded Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 1.81 Inch Diameter X 2.25 Inch Length Size; Imc/Threaded Rigid Conduit Used on; UL 886, CSA C22.2 Approval; Grounding; 1 Inch (Male Hub), 3/4 Inch (Female Hub) Trade Size; Explosionproof, Dust Ignitionproof; UNILETS[R] Brand; Internal Volume 0.76 Cubic Inch; Enclosure Rating Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III; Application Switch Gear, Motor Control Center, Sheet Metal Structure, Cast Box, Enclosure; Applicable Standard Nec/Cec; ES Model
