Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron
Approval: UL 886, CSA C22.2
Used On: Threaded Rigid Metal Conduit/IMC
Additional Information: Internal Volume 3.10 Inch; Enclosure Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III
Catalog Number: ES150100
Brand Name: Unilet[R]
Model: ES
Type: Tapered Male/Female Threaded
Throat Type: Non-Insulated
Trade Size: 1-1/2 Inch (Male Hub), 1 Inch (Female Hub)
Size: 2.25 Inch Dia x 3.13 Inch L
Ground Type: Grounding

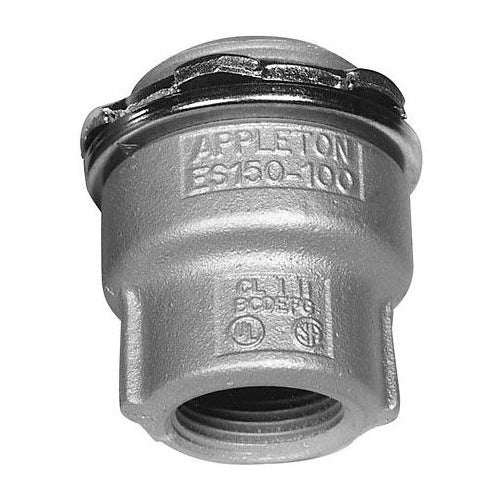

Catalog Description: UNILETS SEALING HUB, SIZE: 1 X 1-1/2 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED MNPT X TAPERED FNPT, CUBIC CAPACITY: 3.1 CU-IN, LENGTH: 3.13 IN, HEIGHT: 2-1/
Category: Cast Boxes
Full Technical Description: Tapered Male/Female Threaded Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 2.25 Inch Diameter X 3.13 Inch Length Size; Imc/Threaded Rigid Conduit Used on; UL 886, CSA C22.2 Approval; Grounding; 1-1/2 Inch (Male Hub), 1 Inch (Female Hub) Trade Size; Explosionproof, Dust Ignitionproof; UNILETS[R] Brand; Internal Volume 3.1 Cubic Inch; Enclosure Rating Class I Division 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III; Application Switch Gear, Motor Control Center, Sheet Metal Structure, Cast Box, Enclosure; Applicable Standard Nec/Cec; ES Model
