Enclosure: Class I Group D, Class II Group E F G, Class III
Approval: UL 886, CSA C22.2
Additional Information: Includes Insulating Liner; Constructional Feature Watertight; Used On Rigid Metal Conduit and IMC
Catalog Number: EXGJH-427
Brand Name: Unilet[R]
Model: EXGJH
Trade Size: 1-1/4 Inch
Fitting Material: Brass End
Material: Bronze Braid, Brass Core
End Type: (2) Male Nipple
Length: 27 Inch

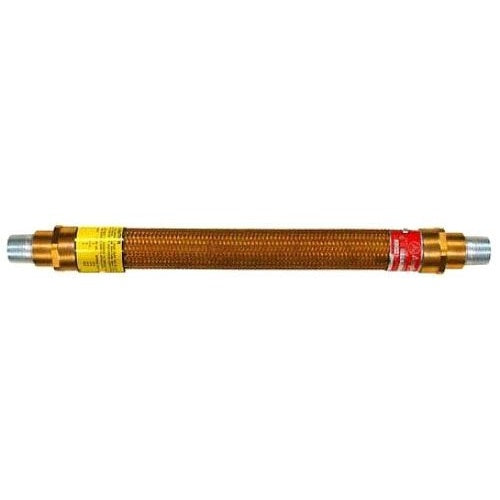

Catalog Description: FLEXIBLE CONDUIT COUPLING, TRADE SIZE 1-1/4 IN, FITTING MATERIAL NATURAL FINISHED BRASS, MATERIAL NATURAL FINISHED BRONZE BRAID, NATURAL FINISHED BRASS CORE, END TYPE (2) MALE NIPPLE, FLEX LENGTH 27 IN, ENCLOSURE CLASS I GROUP D, CLASS II GROUP E F G, CLASS III, APPROVAL UL 886, CSA C22.2, INCLUDES INSULATING LINER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, USED ON RIGID METAL CONDUIT AND IMC
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Bronze (Outer Braid), Brass With Insulating Liner (Inner Core) Material; 27 Inch; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia, Class III Enclosure; 1-1/4 Inch Trade Size; (2) Female End Type; Brass (End), Ductile Iron (Union), Zinc Plated Steel (Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 16 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (2) Removal Male Nipple; Application Hazardous/Wet Location; Applicable Standard Nec/Cec; EXGJH Model
Manufacturer: Appleton Electric
Manufacturer Brand: Appleton Electric
Sub Category: Explosionproof Flexible Conduit Coupling
