Enclosure: Class I Group D, Class II Group E F G, Class III
Approval: UL 886, CSA C22.2
Additional Information: Includes Insulating Liner; Used On Rigid Metal Conduit and IMC
Catalog Number: EXLK-424
Brand Name: Unilet[R]
Model: EXLK
Trade Size: 1-1/4 Inch
Fitting Material: Brass End, Ductile Iron Union
Material: Bronze Braid, Brass Core
End Type: (1) Male Nipple, (1) Union
Length: 24 Inch

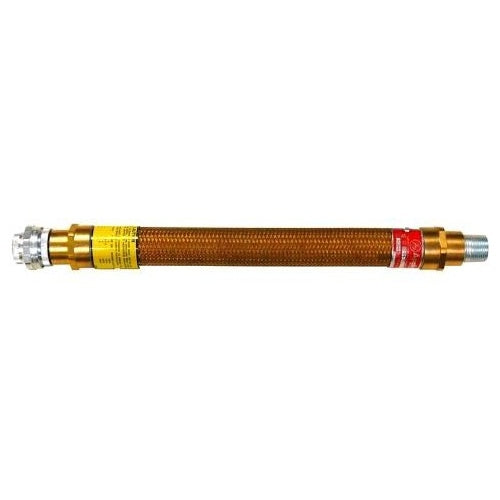

Catalog Description: UNILETS FLEXIBLE COUPLING, TRADE SIZE: 1-1/4 IN, OUTSIDE DIAMETER: 2.63 IN, LENGTH: 30 IN, RADIUS: 16 IN BENDING, FLEXIBILITY: RIGID AND IMC, MATERIAL: OUTER BRONZE BRAID AND INNER BRASS CORE WITH INSULATING LINER, END TYPE (1) MALE NIPPLE, (1) UNION
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Bronze (Outer Braid), Brass With Insulating Liner (Inner Core) Material; 24 Inch; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia, Class III Enclosure; 1-1/4 Inch Trade Size; (2) Female End Type; Brass (End), Ductile Iron (Union), Zinc Plated Steel (Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 16 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (1) Removal Male Nipple, (1) Removal Union; Application Hazardous/Wet Location; Applicable Standard Nec/Cec; EXLK Model
Manufacturer: Appleton Electric
Manufacturer Brand: Appleton Electric
Sub Category: Explosionproof Flexible Conduit Coupling
